Series: X5

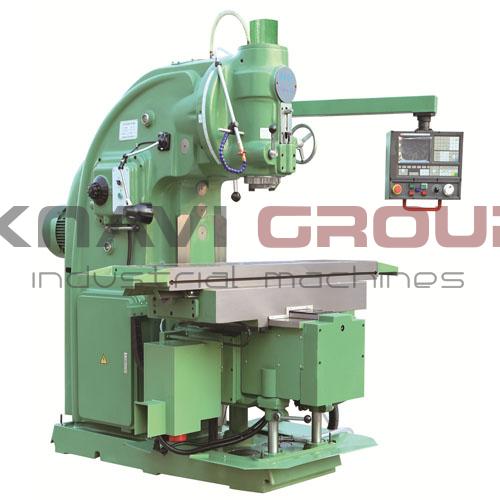

Vertical knee-type milling machine

Milling machine variation Vertical milling machine

Milling Vertical

Working table size 1700mm x 400mm

Spindle speeds range 30rpm — 1500rpm

Milling head swivel angle -45° / 45°

Spindle motor power 11kW

Manual feed travels 1000mm / 350mm / 385mm

Price and terms

Price on request

Get Offer

* Price is based in standard configuration of machine. Click here for choosing configurations of systems and components.

Technical data

Basic feauturies

Milling machine variation

Vertical milling machine

Milling

Vertical

Horizontal worktable

Working table size

1700mm x 400mm

T-slots

3pcs / 18mm / 90mm

Vertical spindle

Spindle speeds range

30rpm — 1500rpm

Spindle speed steps ranges

18pcs

Spindle taper

ISO50

Milling head swivel angle

-45° / 45°

Travel of spindle quill

85mm

Distance between spindle end and surface of worktable

90mm — 465mm

Spindle motor power

11kW

Feeds

Manual feed travels

1000mm / 350mm / 385mm

Min. speed of traverse feeds

6mm/min / 6mm/min / 3mm/min

Max. speed of traverse feeds

3200mm/min / 3200mm/min / 1600mm/min

Torque of axis-drive motors

15N⋅m / 15N⋅m / 23N⋅m

Indication and control

Click to select configuration:

Standard

Engines and power supply

Voltage

380V / 50Hz

Overall dimensions and weight

Weight

4200kg

Overall length

2760mm

Overall width

2160mm

Overall height

2250mm

*Specifications are subject to change without notice.

Series

X5032

XK5040

Basic feauturies

Milling machine variation

Vertical milling machine

Milling

Vertical

Horizontal worktable

Working table size

1325mm x 320mm

1700mm x 400mm

T-slots

3pcs / 18mm / 70mm

3pcs / 18mm / 90mm

Max. weight of workpiece

500kg

—

Vertical spindle

Spindle speeds range

30rpm — 1500rpm

Spindle speed steps ranges

18pcs

Spindle taper

ISO50

Spindle bore diameter

29mm

—

Milling head swivel angle

-45° / 45°

Travel of spindle quill

70mm

85mm

Distance from axis of vertical spindle to bed guideway

350mm

—

Distance between spindle end and surface of worktable

30mm — 400mm

90mm — 465mm

Spindle motor power

7.5kW

11kW

Feeds

Manual feed travels

700mm / 255mm / 370mm

1000mm / 350mm / 385mm

Mechanical feed travels

680mm / 240mm / 350mm

—

Number of feed speeds

18pcs

—

Min. speed of traverse feeds

23.5mm/min / 15mm/min / 8mm/min

6mm/min / 6mm/min / 3mm/min

Max. speed of traverse feeds

1180mm/min / 786mm/min / 394mm/min

3200mm/min / 3200mm/min / 1600mm/min

Rapid traverse

2300mm/min / 1540mm/min / 770mm/min

—

Power of feed motors

1.5kW

—

Torque of axis-drive motors

—

15N⋅m / 15N⋅m / 23N⋅m

X guideways type

▲

—

Y guideways type

■

—

Z guideways type

▲

—

Cutting fluid

Power of coolant pump motor

0.125kW

—

Engines and power supply

Voltage

380V / 50Hz
