ZNC Die-sink EDM machine
ZNC Die-sink EDM machine
HQ-G40 | Caiman
Working table size 680mm x 400mm
X/Y-Axis travel 400mm / 320mm
Ram vertical travel 320mm
Price on request
See more
ZNC Die-sink EDM machine
ZNC Die-sink EDM machine
HQ-540K | Caiman
Working table size 800mm x 500mm
X/Y-Axis travel 500mm / 400mm
Ram vertical travel 300mm
Price on request
See more
ZNC Die-sink EDM machine
ZNC Die-sink EDM machine
HQ-550(ZK) | Caiman
Working table size 800mm x 500mm
X/Y-Axis travel 550mm / 450mm
Ram vertical travel 300mm
Price on request
See more
Wire cut EDM
Wire cut EDM
Wi-640S | JSedm
Machining method Submerge
Working table size 870mm x 680mm
Max. workpiece dimensions 1000mm x 720mm x 345mm
Price on request
See more
Wire cut EDM
Wire cut EDM
Wi-430S | JSedm
Machining method Submerge
Working table size 640mm x 500mm
Max. workpiece dimensions 700mm x 540mm x 295mm
Price on request
See more
CNC Wire cut EDM
CNC Wire cut EDM
ZGW40 | ZGEDM
Working table size 720mm x 520mm
Max. weight of workpiece 600kg
X/Y-Axis travel 400mm / 500mm
Price on request
See more
Wire cut EDM
Wire cut EDM
DK7740 | JZ
Working table size 450mm x 640mm
Max. weight of workpiece 450kg
X/Y-Axis travel 400mm / 630mm
Price on request
See more
Wire cut EDM
Wire cut EDM
S1080 | WNJ
Max. weight of workpiece 1200kg
X/Y-Axis travel 1000mm / 800mm
Ram vertical travel 400mm
Price on request
See more
Wire cut EDM
Wire cut EDM
S800 | WNJ
Max. weight of workpiece 800kg
X/Y-Axis travel 800mm / 630mm
Ram vertical travel 400mm
Price on request
See more
Wire cut EDM
Wire cut EDM
S630 | WNJ
Max. weight of workpiece 600kg
X/Y-Axis travel 630mm / 500mm
Ram vertical travel 350mm
Price on request
See more
Wire cut EDM
Wire cut EDM
S500 | WNJ
Max. weight of workpiece 400kg
X/Y-Axis travel 500mm / 400mm
Ram vertical travel 280mm
Price on request
See more
Wire cut EDM
Wire cut EDM
A530 | WNJ
Max. weight of workpiece 300kg
X/Y-Axis travel 500mm / 300mm
Ram vertical travel 300mm
Price on request
See more
Wire cut EDM
Wire cut EDM
A640 | WNJ
Max. weight of workpiece 400kg
X/Y-Axis travel 600mm / 400mm
Ram vertical travel 300mm
Price on request
See more
Wire cut EDM
Wire cut EDM
S400 | WNJ
Max. weight of workpiece 300kg
X/Y-Axis travel 400mm / 320mm
Ram vertical travel 280mm
Price on request
See more
CNC EDM Wire Cut
CNC EDM Wire Cut
IPM45F | MACHIMAX
Working table size 880mm x 600mm
Max. weight of workpiece 500kg
X/Y-Axis travel 450mm / 600mm
Price on request
See more

EDM (electrical discharge machining, also known as spark eroding or wire erosion) is a machining process that uses the electrical discharges to alter the shape of a workpiece - an electrical current passes between an electrode and a workpiece which are separated by a dielectric liquid and as a result spark erodes the workpiece to form a desired final shape.



Types of EDM machines:

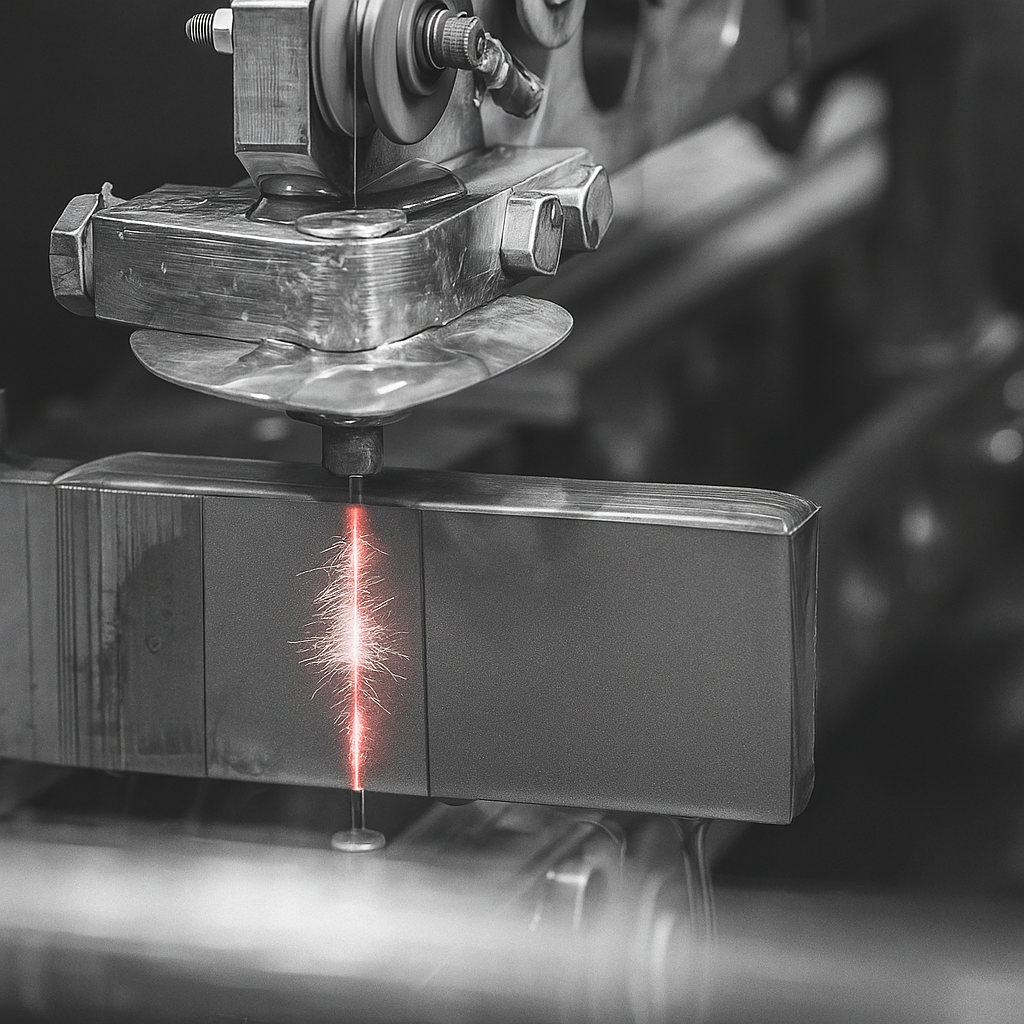

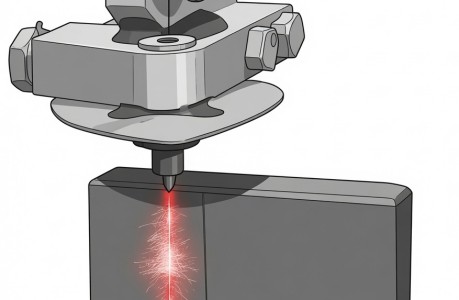

  • Wire-cut EDM (WEDM);

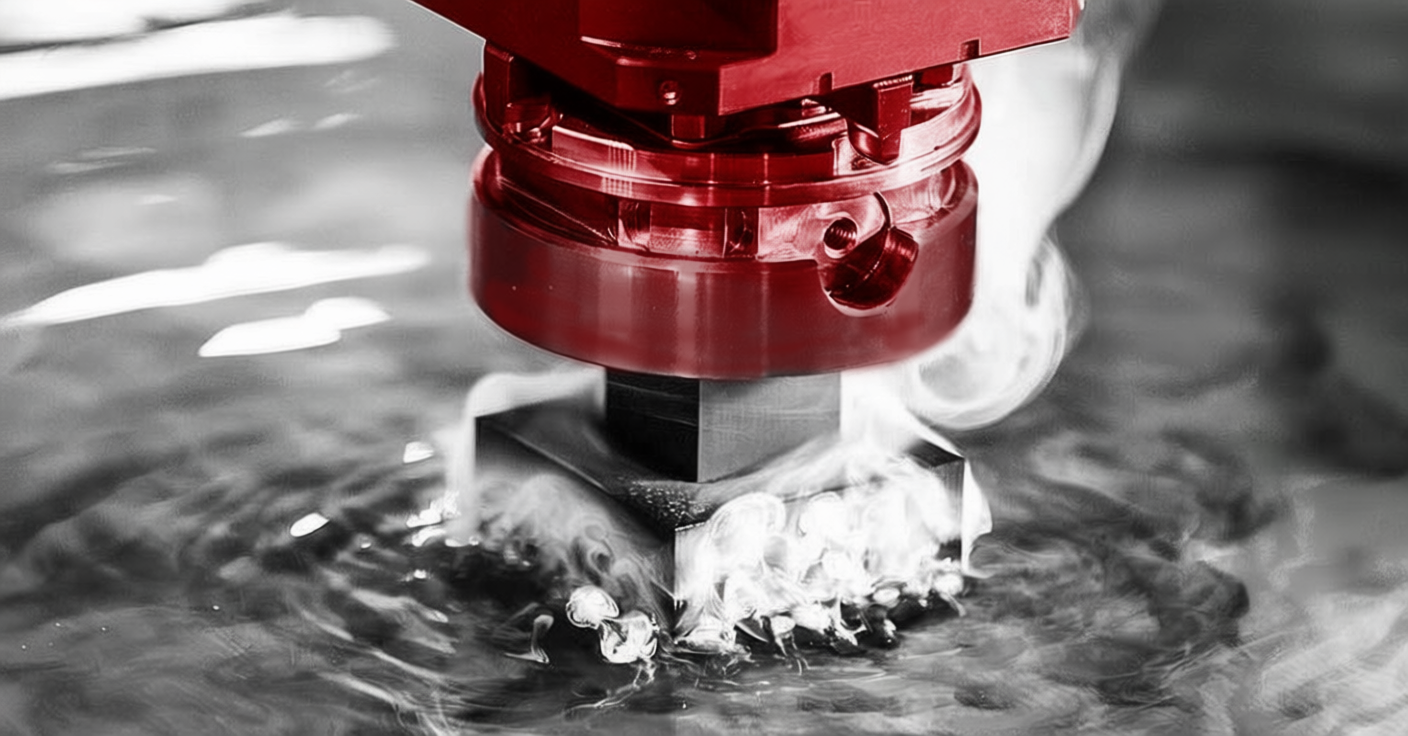

  • Die-sink EDM (Ram-type EDM);

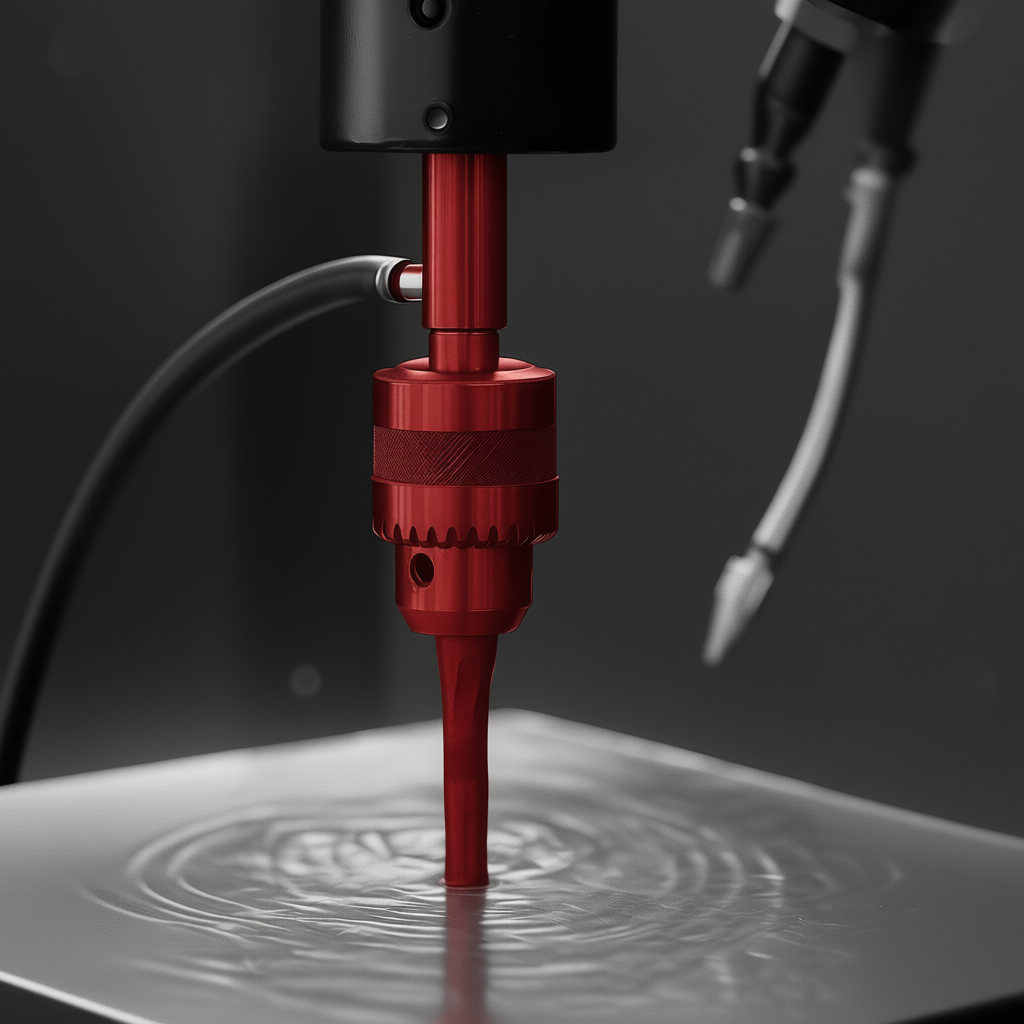

  • Hole drilling  EDM;

Combined with computer numeric controls (CNC), EDM machines become an accurate and reliable machining method that is now standard among more conventional cutting methods. It is particularly popular for small-volume productions such as prototypes. Various processes are possible with electrical discharge machining, including turning, milling, grinding and small hole drilling. Besides die and mould-making, EDM is typically applied in the automotive and aerospace industry, for example, in the production of aircraft engines.



Advantages:

  • Machining the hight hardness workpieces made from titanium or tungsten carbide;
  • Machining the shapes and depths what are impossible to process with a cutting tool;
  • Excellent surface finish;
  • High precision machining method

However, EDM machining is the rather slow method compared to traditional machining, therefore high-volume tasks are not suited for this method. At the same time, the spark eroding process requires high power consumption. If need to rough cut a lot of parts quickly, electrical discharge machining probably isn’t the right processing machine.



Reliable and durability EDM machines from Asia by Knavi Group LLC.

Knavi Group LLC offers a large variety of reliable EDM machines for any task by the largest manufacturers from China, Taiwan (R.O.C), Korea and Japan. A wide range of high quality machine tools with a long warranty and lowest prices. Assistance in the selection of a needed machine and equipment, installation supervision and commissioning, training, warranty and post-warranty maintenance, door-delivery to any region of the country, supply of spare parts and tools.
