Home / Machine tools and equipment / Metalworking machine tools / Metal lathes / Gang type CNC lathes / Dual-spindle Lathe with Double Gang Tool Carriers DS-6-DIIS
DAS

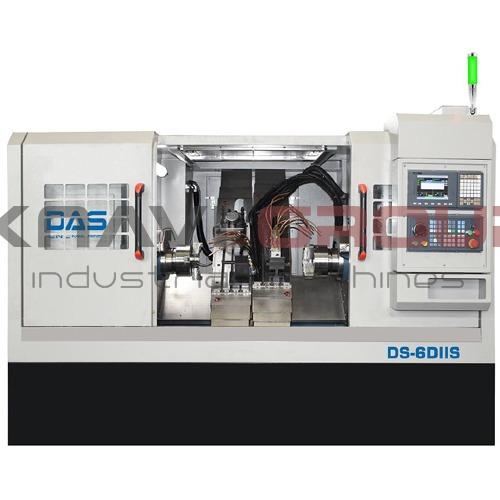

Dual-spindle Lathe with Double Gang Tool Carriers DS-6-DIIS

Series DS-DI
Modification Doble spindle Gang type CNC lathe
Max. swing diameter over bed 500mm
Max. swing over cross slide: 320mm
Processing length 200mm

Main Configuration

CNC
Syntec 22TB
Fanuc 0i-TF Plus

Price & Terms

Price on Request

Specifications

Basic feauturies

Modification Doble spindle Gang type CNC lathe

CNC

CNC
Syntec 22TB
Fanuc 0i-TF Plus

Processing parameters

Max. swing diameter over bed 500mm
Max. swing over cross slide: 320mm
Processing length 200mm

Main spindle

Spindle speeds range 4500rpm
Spindle bore diameter 56mm
Bar Size 45mm
Lathe Spindle Nose A2-5
Spindle motor power 11kW

Back spindle

Spindle speeds range 4500rpm
Spindle bore diameter 56mm
Bar Size 45mm
Lathe Spindle Nose A2-5
Spindle motor power 11kW

Lathe chuck

Lathe chuck 152.4mm / Collet chuck

Tool Carrier

Tool post type Gand type tool post x 2pcs
Number of installed tool blocks 8pcs

Feeds

X-Axis travel 1060mm / Tool Carrier
X2-Axis travel 1060mm / Tool Carrier
Z-Axis travel 400mm / Spindle
Z2-Axis travel 400mm / Spindle
Axis drive motor power 3.1kW / 3.1kW / 3.1kW / 3.1kW
Rapid traverse 26m/min / 26m/min / 26m/min / 26m/min

Accuracy

Positioning accuracy 0.005mm
Repeatability accuracy 0.005mm

Cutting fluid

Pump power 0.75kW + 0.75kW

Lubrication system

Lubrication system Full-automatic

Hydraulic system

Motor power of hydraulic station 1.5kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 4500kg
Overall length 3000mm
Overall width 1700mm
Overall height 2100mm

Peripherals

Chip conveyors

CC-CT Turbo
CC-CT Turbo
Chip removal system : Chain type chip conveyor , Chip carrier : Presence

Equipment

✅
Fixed Tool Holder (Default)
Quantity: 6 pcs
Ø25
✅
Fixed Tool Holder (Default)
Quantity: 6 pcs
□ 20x20
✅
Hydraulic Unit (Default)
✅
Main spindle collet (Default)
Quantity: 2 pcs
Parts catcher
Radial drive unit
✅
Status tower light (Default)
✅
Sub spindle collet (Default)
Quantity: 2 pcs
✅
Tool Holder (Default)
Quantity: 2 pcs
Ø152.4
✅
Tools box (Default)
✅
Work area lighting lamp (Default)
