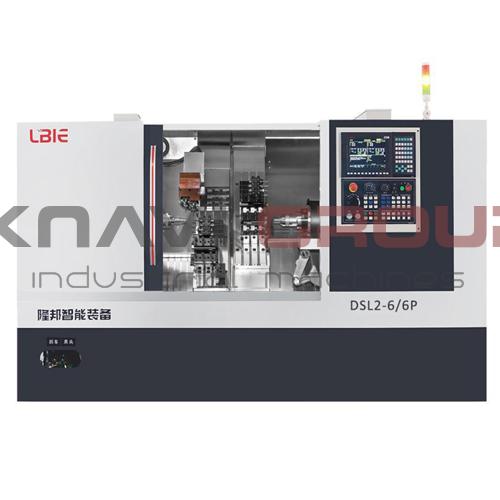

Dual-spindle Lathe with Double Gang Tool Carriers DSL2-6/6P

Series DSL
Modification Doble spindle Gang type CNC lathe
Y-axis Presence
Max. swing diameter over bed 200mm
Max. swing over cross slide: 160mm
Processing length 120mm

Price & Terms

Price on Request

Specifications

Basic feauturies

Modification Doble spindle Gang type CNC lathe
Bed slant angle 45°
Y-axis Presence

CNC

CNC Fanuc 0i-TF Plus

Processing parameters

Max. swing diameter over bed 200mm
Max. swing over cross slide: 160mm
Processing length 120mm

Main spindle

Spindle speeds range 4500rpm
Spindle bore diameter 56mm
Bar Size 46mm
Lathe Spindle Nose A2-5
Spindle drive Direct drive
Spindle motor power 11kW
Spindle torque 52N⋅m

Back spindle

Spindle speeds range 4500rpm
Spindle bore diameter 56mm
Bar Size 46mm
Lathe Spindle Nose A2-5
Spindle drive Direct drive
Spindle motor power 11kW
Spindle torque 52N⋅m

Lathe chuck

Lathe chuck 152.4mm / Collet chuck

Tool Carrier

Tool post type Gand type tool post x 2pcs

Feeds

X-Axis travel 1200mm
X2-Axis travel 1200mm
Z-Axis travel 300mm
Z2-Axis travel 200mm
Axis drive motor power 1.2kW / 1.2kW / 1.8kW / 1.2kW
Torque of axis-drive motors 7N⋅m / 7N⋅m / 11N⋅m / 7N⋅m
Rapid traverse 22m/min / 22m/min / 22m/min / 22m/min

Accuracy

Accuracy class index IT6
Best surface roughness 0.4μm/Ra
Positioning accuracy 0.008mm / 0.008mm
Repeatability accuracy 0.004mm / 0.004mm

Cutting fluid

Pump power 0.37kW

Lubrication system

Lubrication system Full-automatic

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 4000kg
Overall length 2956mm
Overall width 2111mm
Overall height 2181mm

Peripherals

Chip conveyors

CC-CT Turbo
CC-CT Turbo
Chip removal system : Chain type chip conveyor , Chip carrier : Presence

Equipment

✅
Fixed Tool Holder (Default)
Quantity: 2 pcs
□ 25x25
✅
Fixed Tool Holder (Default)
Quantity: 6 pcs
Ø32
✅
Foot brake (Default)
✅
Hydraulic Unit (Default)
✅
Main spindle collet (Default)
Quantity: 1 pcs
Oil mist collector
Parts catcher
✅
Radial drive unit (Default)
Quantity: 1 pcs
✅
Status tower light (Default)
✅
Sub spindle collet (Default)
Quantity: 1 pcs
✅
Tool Holder (Default)
Quantity: 2 pcs
Ø152.4
✅
Tools box (Default)
✅
Work area lighting lamp (Default)

Description

Key Advantages of the LBIE DSL2-6/6P Lathe Machining Center

  1. Dual-Spindle Configuration
    The presence of a main spindle and a counter spindle enables:

    • Rough machining on the main spindle followed by automatic part transfer

    • Finish machining of the second side on the counter spindle without operator intervention

    • Maximum efficiency through parallel processing of two workpieces

    • 40–60% reduction in cycle time compared to single-spindle machines

  2. Linear Tool Arrangement
    The unique tool mounting system with dual portal tool holders provides:

    • Instant access to all tools without turret indexing time

    • Enhanced rigidity during machining due to direct mounting of holders to the bed

    • Ability to mount a large number of tools simultaneously for complex operations

    • Minimal vibration and maximum precision during high-speed machining

  3. 45° Inclined Bed Design
    The optimized bed structure made of high-strength cast iron delivers:

    • Excellent vibration damping and high structural rigidity

    • Efficient chip evacuation by gravity

    • Increased machine stability during intensive operation

    • Simplified access to the working area for maintenance and process monitoring

  4. High-Precision Control System
    Standard CNC system configuration provides:

    • Intuitive interface with color display

    • Support for standard machining cycles (turning, drilling, threading)

    • Real-time programming capability

    • Optional FANUC or Siemens control systems available for advanced functionality
