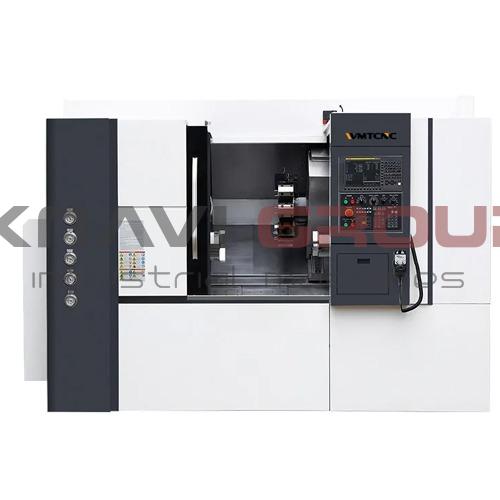

Turning center TX500ESY

Series TX
Y-axis Presence
Max. swing diameter over bed 650mm
Max. swing over cross slide: 460mm
Spindle bore diameter 66mm

Price & Terms

Price on Request

Specifications

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 35°
Y-axis Presence
C axis Presence
X/Z guideways type Linear guidway

CNC

CNC Fanuc 0i-TF Plus (1)

Capability

Max. swing diameter over bed 650mm
Max. swing over cross slide: 460mm
Processing length
620mm
550mm
900mm

Main spindle

Spindle drive Direct drive
Spindle speeds range 4000rpm
Lathe Spindle Nose A2-6
Spindle bore diameter 66mm
Bar Size 52mm
Spindle motor power 22kW / 30kW
Lathe chuck 203.2mm / Hydraulic / 3-jaw chuck

Back spindle

Spindle drive Direct drive
Spindle speeds range 5000rpm
Lathe Spindle Nose A2-5
Spindle bore diameter 55mm
Bar Size 46mm
Spindle motor power 11kW / 15kW
Lathe chuck 152.4mm / Hydraulic / 3-jaw chuck

Feeds

X-Axis travel 200mm
X-axis transmission type Ball screw
Z-axis transmission type Ball screw
Z-Axis travel
620mm
550mm
900mm
Y-Axis travel
100mm
140mm
Rapid traverse
20000mm/min / 12000mm/min / 20000mm/min
20000mm/min / 7000mm/min / 20000mm/min

Carriage

Tool post Lathe turret
Turret type Driven

Tools

Tooling Live tooling
Tools quantity 12pcs
Tool shank diameter 40mm
Tool shank
20mm x 20mm
25mm x 25mm
Live tooling speed
4000rpm
6000rpm

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 5300kg
Overall length 3100mm
Overall width 2000mm
Overall height 2250mm

Peripherals

Chip conveyors

CC-CT Turbo
CC-CT Turbo
Chip removal system : Chain type chip conveyor , Chip carrier : Presence

Tool measuring system

HPMA Renishaw
HPMA Renishaw
Tool measuring system : Renishaw HPMA , Repeatability accuracy : 0.008mm

Automatic barfeeders

DH65 S2
DH65 S2
Bar Size : 5mm — 65mm , Max. bar lenght : 1210mm , Magazine capacity : 114pcs \ 5mm

Equipment

✅
Air-conditioner for electrical cabinet (Default)
✅
Anchor bolt set (Default)
✅
Automatic centralized oil lubrication (Default)
✅
Bar feeder interface (Default)
Boring tool holder
Quantity: 1 pcs
End face tool holder
Quantity: 1 pcs
High pressure coolant pump
✅
Hydraulic chuck (Default)
Quantity: 1 pcs
Ø203.2
✅
Hydraulic chuck (Default)
Quantity: 1 pcs
Ø152.4
Hydraulic chuck with through hole
Quantity: 1 pcs
Ø152.4
Hydraulic chuck with through hole
Quantity: 1 pcs
Ø203.2
✅
Hydraulic Unit (Default)
Oil mist collector
Oil skimmer
Parts catcher
Powered tool holder (±0°)
Quantity: 1 pcs
Powered tool holder (±90°)
Quantity: 1 pcs
✅
Safety guard (Default)
✅
Status tower light (Default)
Tool Holder
Quantity: 1 pcs
Ø152.4
Tool Holder
Quantity: 1 pcs
Ø203.2
✅
Tools box (Default)
✅
Work area lighting lamp (Default)

Description

TX Series Turn-Mill Centers are a comprehensive machining solution that combines high speed, precision, and exceptional rigidity. The dual-spindle models enable complete part processing without operator intervention, significantly boosting productivity.

Key Features:

  • Spindle: Direct Drive (DDS) or belt-driven type for high speed and high torque.

  • Turret: 12-station, equipped with powered tools and Y-axis for milling and drilling operations.

  • High C-Axis Accuracy: Ensures precise positioning for complex contour machining.

  • Premium Components: Heavy-duty linear guideways, preloaded ball screws, and NSK bearings.

  • Rigid Construction: A wide-span base and bed with modular design guarantee long-term durability and reliability.

Ideal for: Manufacturing complex and high-precision parts in the automotive, aerospace, and medical industries.
