4-axis CNC bridge saw stone cutting machine
4-axis CNC bridge saw stone cutting machine
WLCNC-500 | WANLONG
Max. workpiece dimensions 3200mm x 2000mm x 130mm
Max. number of saw blades 1pcs
Stone-sawing machine type Single-blade / Bridge-type
Price on request
See more
Disc-saw stone cutting machine
Disc-saw stone cutting machine
PLC-600 | WANLONG
Max. number of saw blades 1pcs
Stone-sawing machine type Single-blade / Bridge-type
Max. workpiece dimensions 3200mm x 2000mm x 180mm
Price on request
See more
Disc-saw stone cutting machine
Disc-saw stone cutting machine
PLC-400 | WANLONG
Max. workpiece dimensions 3200mm x 2000mm x 80mm
Max. number of saw blades 1pcs
Stone-sawing machine type Single-blade / Bridge-type
Price on request
See more
Disc-saw stone cutting machine
Disc-saw stone cutting machine
PLC-700 | WANLONG
Max. number of saw blades 1pcs
Stone-sawing machine type Single-blade / Bridge-type
Max. workpiece dimensions 3200mm x 2000mm x 230mm
Price on request
See more
Single column single-blade block cutting machine
Single column single-blade block cutting machine
HSAM-1800 | Hizar
Max. number of saw blades 1pcs
Stone-sawing machine type Multi-blade / Single-column type
Cutting fluid consumption 6m³/h
Price on request
See more
Gantry-type stone cutting machine
Gantry-type stone cutting machine
HGQM-1600 | Hizar
Max. number of saw blades 8pcs
Stone-sawing machine type Multi-blade / Gantry-type
Max. workpiece dimensions 2000mm x 1100mm x 630mm
Price on request
See more
Bridge-type stone block cutting machine
Bridge-type stone block cutting machine
HQQ-1200 | Hizar
Max. number of saw blades 1pcs
Stone-sawing machine type Multi-blade / Bridge-type
Control PLC
Price on request
See more
Bridge-type multiblade stone block cutting machine
Bridge-type multiblade stone block cutting machine
HQQ-2500 | Hizar
Max. number of saw blades 3pcs
Stone-sawing machine type Multi-blade / Bridge-type
Control PLC
Price on request
See more
Single column stone block cutting machine
Single column stone block cutting machine
HSAM-2500 | Hizar
Max. number of saw blades 3pcs
Stone-sawing machine type Single-blade / Single-column type
Control PLC
Price on request
See more
Single column multi-blade block cutting machine
Single column multi-blade block cutting machine
HSAM-2200 | Hizar
Max. number of saw blades 3pcs
Stone-sawing machine type Multi-blade / Single-column type
Control PLC
Price on request
See more
Single column multi-blade block cutting machine
Single column multi-blade block cutting machine
HSAM-1600 | Hizar
Max. number of saw blades 6pcs
Stone-sawing machine type Multi-blade / Single-column type
Control PLC
Price on request
See more
Cantilever-type stone cutting machine
Cantilever-type stone cutting machine
SLQ-600 | WANLONG
Max. number of saw blades 1pcs
Working table size 680mm x 680mm
Stone-sawing machine type Single-blade / Single-column type / Cantilever
Price on request
See more
Tile Splitting Machine
Tile Splitting Machine
BFQ-800 | WANLONG
Max. workpiece dimensions 1660mm x 800mm
Working table size 1250mm x 800mm
Wire Saw rope Diamond wire
Price on request
See more
Tile Splitting Machine
Tile Splitting Machine
BFQ-600 | WANLONG
Working table size 1250mm x 600mm
Max. workpiece dimensions 1660mm x 600mm
Wire Saw rope Diamond wire
Price on request
See more
Stone cutting wire saw machine
Stone cutting wire saw machine
CZSJ-2000 | WANLONG
Working table size 2000mm x 2000mm
Max. workpiece dimensions 3500mm x 2000mm x 2000mm
Wire Saw rope Diamond wire / 18000mm / 8.6mm
Price on request
See more

Natural stone (granite, marble, onyx, basalt, travertine, etc.) is used in all sectors of life: architecture and construction, furniture (countertops, sinks, benches) and interiors, road construction, the manufacture of monuments, sculptures, tombstones, etc. For the manufacture of any stone product, it is necessary to saw a stone block mined in a quarry. This operation is carried out by stone-sawing machines.

Stone cutting machines have a rigid frame with mounted on it drivers for rotating the cutting tools and for moving the machine. The cutting tools of stonecutting machines are circular saws and chain or wire (rope) cutters equipped with hard-alloy teeth.

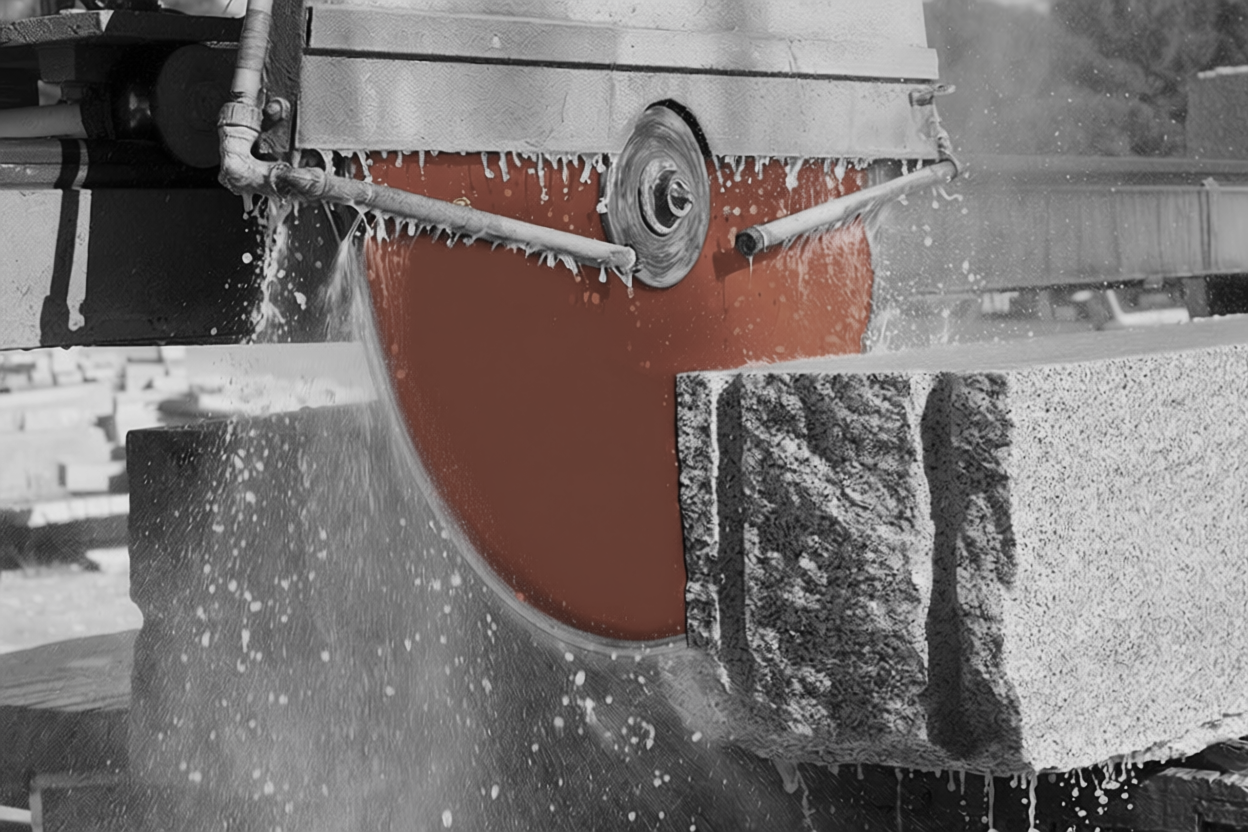

  • Disc saw cutting
    The cutting tool is a steel alloy disc with diamond segments welded to the periphery. Depending on the thickness to be cut the size of the disc can vary, ranging between 300 mm and 4 metres in diameter. Large disc machines are fitted with discs of 4 metres in diameter with segments that are 14 mm thick. Such machines, when fitted with powerful motors of up to 110 kW, can open large blocks measuring 1.7 metres.

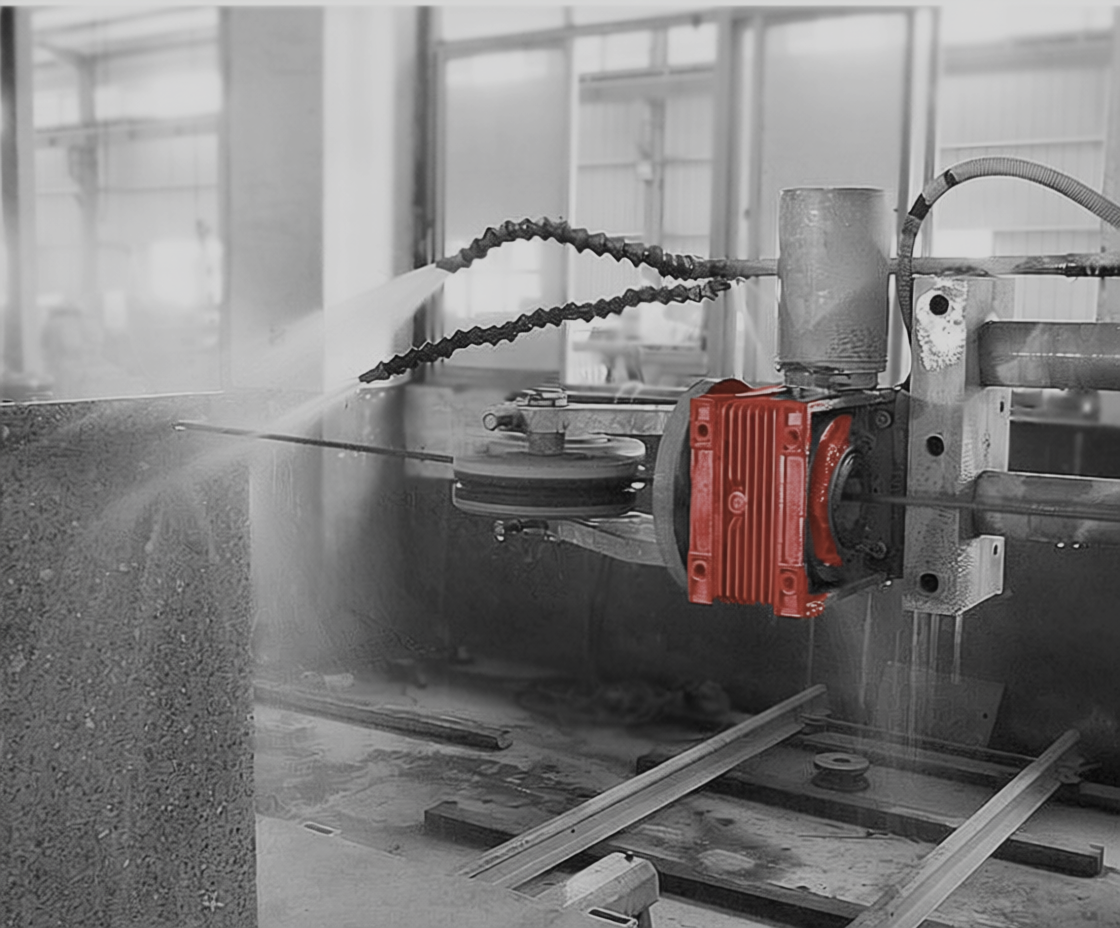

  • Wire cutting
    The cutting tool is a steel wire, usually from four to  fifteen millimetres thick, on to which diamond beads, as they are called, are attached. These beads have the same structure as the diamond segments: sintered polycrystalline diamonds in a metal matrix. There must be separation between the diamond beads to allow for the removal of cut away material, and 30 – 40 beads are usually fitted per metre. The element separating the beads may differ depending on the type of wire, which may be springs or injected polymer, but normally vulcanised rubber or plastic.
  • Band saw cutting
    The saw consists of a flexible strip and merlons with welded diamond segments on its ends. As the strip is very narrow, small 3 mm thick segments can be welded, by which a major reduction can be achieved in cutting thickness.



Reliable and durability stone cutting machines from Asia by Knavi Group LLC.

Knavi Group LLC offers a large variety of reliable stone-sawing machines for any task by the largest manufacturers from China, Taiwan (R.O.C), Korea and Japan. A wide range of high quality machine tools with a long warranty and lowest prices. Assistance in the selection of a needed machine and equipment, installation supervision and commissioning, training, warranty and post-warranty maintenance, door-delivery to any region of the country, supply of spare parts and tools.
