6-axis CNC spring coiling machine
6-axis CNC spring coiling machine
YF-8620 | YFJX
Quantity of controlled axis 6pcs
Spring diameter 30mm
Type of spring Compression / Tension / Wire bending
Price on request
See more
6 axis spring coiling machine
6 axis spring coiling machine
JTC 650 | JOINT
Quantity of controlled axis 6pcs
Wire diameter 1.2mm — 5mm
Wire feed value 0.01mm — No limitation
Price on request
See more
7 axis spring coiling machine
7 axis spring coiling machine
JTC 920 | JOINT
Quantity of controlled axis 9pcs
Wire diameter 0.5mm — 2mm
Wire feed value 0.01mm — 10000mm
Price on request
See more
7 axis spring coiling machine
7 axis spring coiling machine
JTC 720 | JOINT
Quantity of controlled axis 7pcs
Wire diameter 0.5mm — 2mm
Wire feed value 0.01mm — 10000mm
Price on request
See more
5 axis spring coiling machine
5 axis spring coiling machine
JTC 520 | JOINT
Quantity of controlled axis 5pcs
Wire diameter 0.5mm — 2mm
Wire feed value 0.01mm — 10000mm
Price on request
See more
9 axis spring coiling machine
9 axis spring coiling machine
JTC 960 | JOINT
Quantity of controlled axis 6pcs
Wire diameter 2mm — 6mm
Wire feed value 0.01mm — No limitation
Price on request
See more
6 axis spring coiling machine
6 axis spring coiling machine
JTC 660 | JOINT
Quantity of controlled axis 6pcs
Wire diameter 2mm — 6mm
Wire feed value 0.01mm — No limitation
Price on request
See more
9 axis spring coiling machine
9 axis spring coiling machine
JTC 940 | JOINT
Quantity of controlled axis 9pcs
Wire diameter 1.2mm — 4mm
Wire feed value 0.01mm — No limitation
Price on request
See more
6 axis spring coiling machine
6 axis spring coiling machine
JTC 640 | JOINT
Quantity of controlled axis 6pcs
Wire diameter 1.2mm — 4mm
Wire feed value 0.01mm — No limitation
Price on request
See more
5 axis spring coiling machine
5 axis spring coiling machine
JTC 510 | JOINT
Quantity of controlled axis 5pcs
Wire diameter 0.15mm — 1mm
Wire feed value 0.01mm — 10000mm
Price on request
See more
CNC hot-coiling spring machine
CNC hot-coiling spring machine
SJX-25 | KDE
Direction of coiling Right + Left
Control method CNC
Quantity of controlled axis 2pcs
Price on request
See more
12-axis CNC spring forming machine
12-axis CNC spring forming machine
YF-1250 | YFJX
Quantity of controlled axis 12pcs
Wire diameter 1.5mm — 5mm
Sliders axis 8pcs x 2kW
Price on request
See more
3-axis CNC spring forming machine
3-axis CNC spring forming machine
YF-8345 | YFJX
Quantity of controlled axis 3pcs + 4pcs
Wire diameter 1mm — 4.5mm
Total motor power 12.5kW
Price on request
See more
CNC Spring coiling machine
CNC Spring coiling machine
CNC8CS(M) | EN | JOTING
Quantity of controlled axis 4pcs
Type of spring Compression
Wire diameter 0.13mm — 0.8mm
Price on request
See more
4-axis CNC spring coiling machine
4-axis CNC spring coiling machine
410 | KDE
Quantity of controlled axis 4pcs
Type of spring Compression
Total motor power 4kW
Price on request
See more
<
1
...

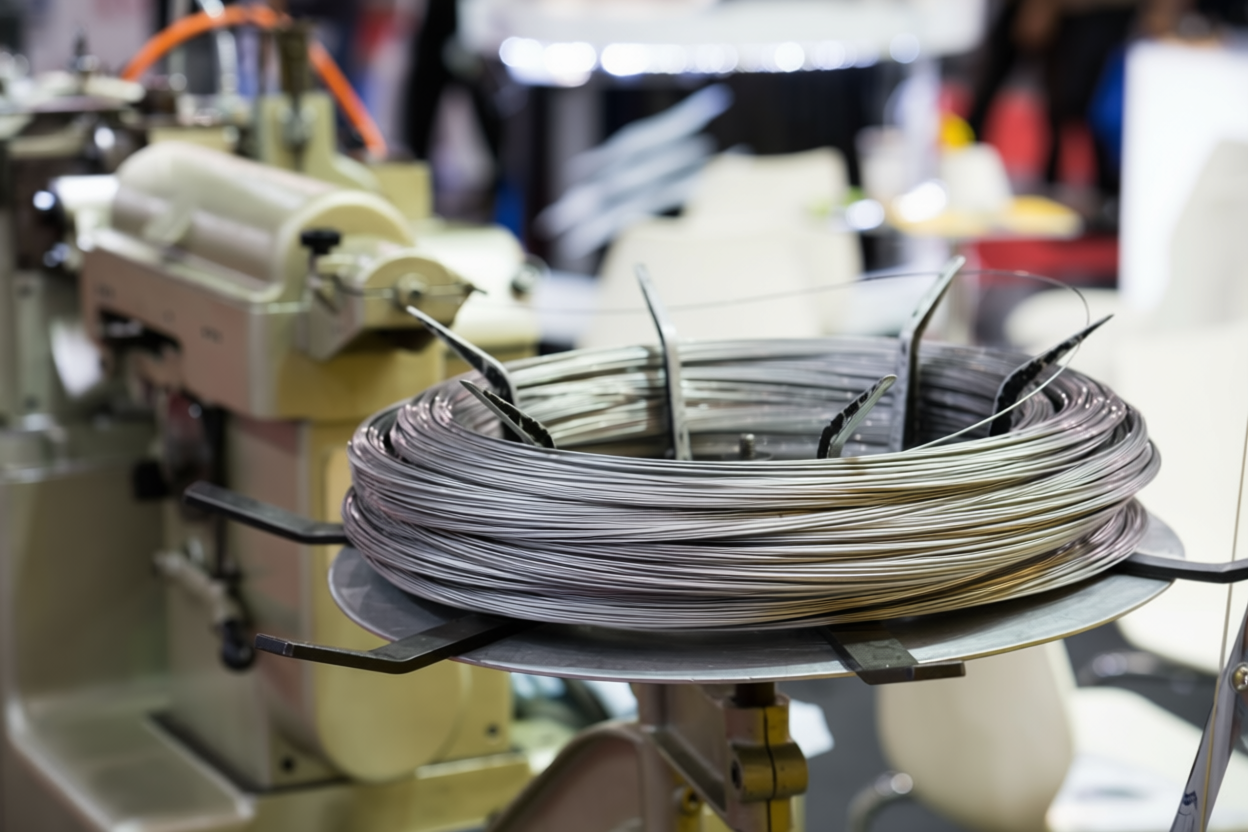

Wire forming is the process, where wire from a coil or blank length is forming or bending into a specific configuration. It can be achieved by a manual method of brute force applied to bending the wire around controlled shapes, or by special machinery to manipulate the wire to the needed shapes. Although there are many types of wire forming, will focus’s on few main types of specialized machine tools what are used in production wire forming.



Cam-type wire bending, coiling and forming machinery.

Early CAM operated machines required extensive setup, many trial runs and scrapped parts and large quantities make it all that setup worthwhile. Now, with adding CNC technology into CAM-type machines, wire forming process comes much faster and easy. But anyway, this types of wire forming machines still need cums adjusting and settings, some trial runs and good skills of the operator.

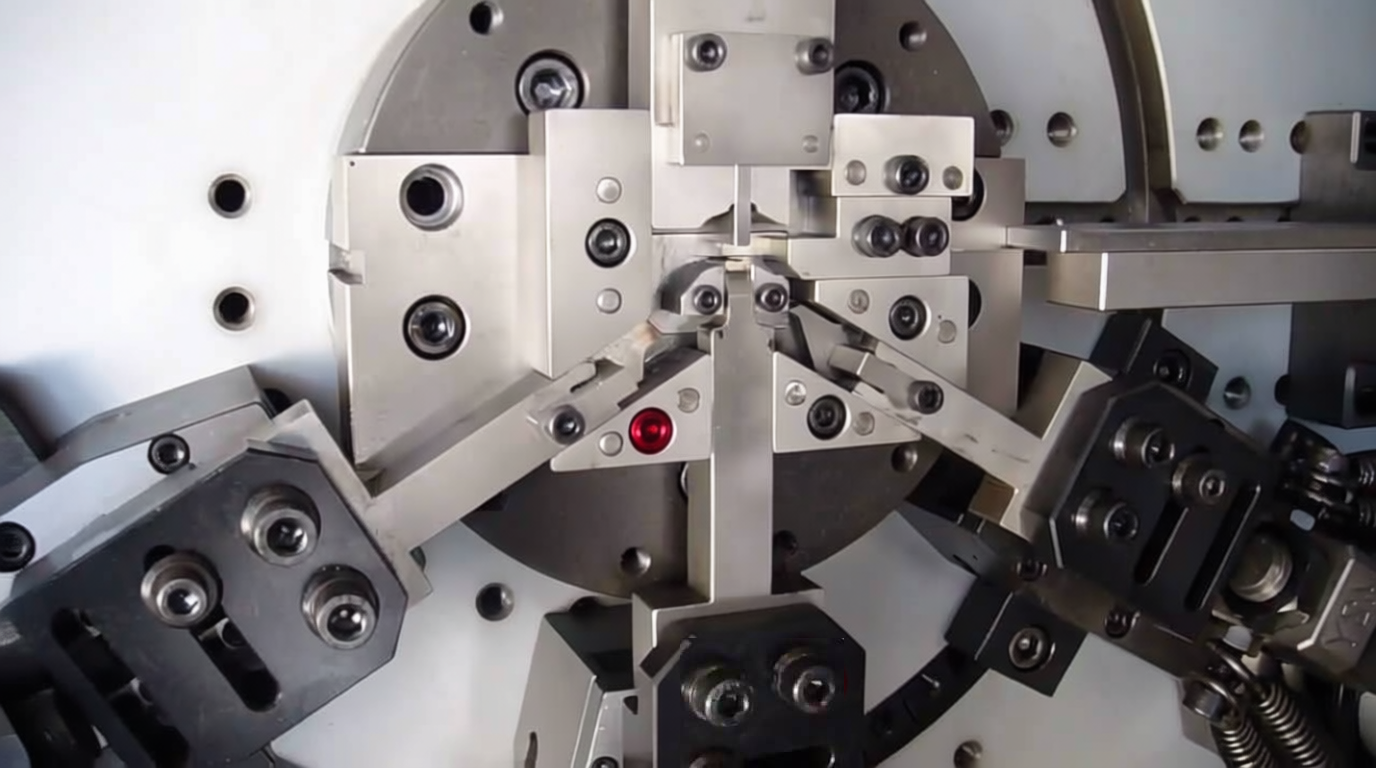

Camless-type wire bending, coiling and forming machinery.

In general, the technology of camless machines is based on cam technology - here the cam system is replaced by independent servo-drives for each axis. As a result, all machine tool setup is all done through CNC, without mechanical setup and calibration. This greatly simplifies the work with equipment and increases its speed.



Turning-type (lathe-type) wire bending, coiling and forming machinery.

The oldest technology of mechanical wire forming, which consists in winding wire on a rotating mandrel. Often for these purposes, lathes are used, or lathe-based special coiling machines. Simple compression and torsion springs are made in this way.



Spring making machinery at affordable prices.

On our site you will find a wide range of equipment and machines for the production of springs of various types. Our machines have high production efficiency, are reliable and durable. Assistance in the selection of a needed machine and equipment, installation supervision and commissioning, training, warranty and post-warranty maintenance, door-delivery to any region of the country, supply of spare parts and tools.
