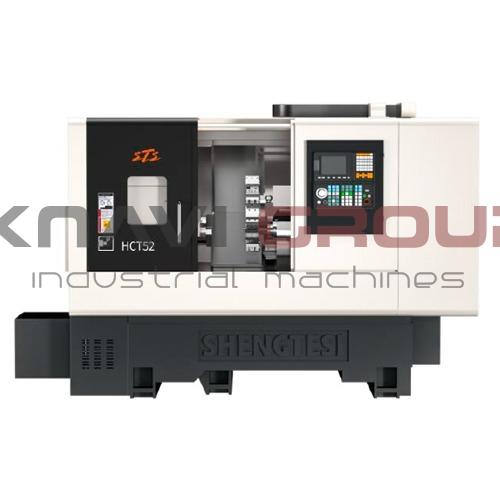

CNC Horizontal Lathe HCT46

Series HCT

Max. swing diameter over bed 500mm

Max Cutting Diameter 400mm

Processing length 500mm

Lathe Spindle Nose A2-5

Bar Size 45mm

Main Configuration

CNC

Syntec 22TA

Fanuc 0i-TF Plus

SINUMERIK 828

Specifications

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 45°

CNC

Syntec 22TA

Fanuc 0i-TF Plus

SINUMERIK 828

Capability

Max. swing diameter over bed 500mm

Max Cutting Diameter 400mm

Processing length 500mm

Headstock

Spindle drive Belt drive

Spindle speeds range 4000rpm

Lathe Spindle Nose A2-5

Spindle bore diameter 56mm

Bar Size 45mm

Spindle torque

47.8N⋅m

95.5N⋅m

Spindle motor power

5.5kW

7.5kW

Lathe chuck

Chuck size 6″

Clamping type Hydraulic

Feeds

X-Axis travel 220mm

X-axis transmission type Ball screw / Ø 32mm

Z-Axis travel 500mm

Z-axis transmission type Ball screw / Ø 32mm

Rapid traverse 20000mm/min / 20000mm/min

Power of feed motors 1.8kW / 1.8kW

Carriage

Tool post Lathe turret

Number of stations 12pcs

Tool сhanging time (Tool-to-Tool) 0.4sec.

Tool shank 25mm x 25mm

Tailstock

Tailstock Hydraulic

Tailstock stroke 500mm

Taper MT5

Accuracy

Positioning accuracy 0.01mm / 0.01mm

Repeatability accuracy 0.0025mm / 0.0025mm

Cutting fluid

Pump motor power 0.55kW

Lubrication system

Lubrication system Full-automatic

Engines and power supply

Total motor power 10kW

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 4300kg

Overall length 3130mm

Overall width 1811mm

Overall height 1980mm

Peripherals

Chip conveyors

CC-CT Turbo

Chip removal system : Chain type chip conveyor , Chip carrier : Presence

Tool measuring system

HPMA Renishaw

Tool measuring system : Renishaw HPMA , Repeatability accuracy : 0.008mm

Workpiece measurement system

OLP40 Renishaw

Workpiece measurement system : Renishaw OLP40 , Repeatability accuracy : 0.001mm

Equipment

Description

HCT Series CNC Lathes are designed for high-productivity turning operations in large-scale and mass production environments.

Key Features and Advantages:

High Rigidity and Stability: A one-piece bed, manufactured from high-quality cast iron, ensures minimal vibration and provides exceptional stability during heavy-duty cutting operations.
Slant Bed Design: The slanted bed construction offers excellent operator accessibility for workpiece loading and unloading, while also facilitating efficient and uninterrupted chip removal.
High Productivity: Equipped with a servo-driven turret head, enabling rapid tool changes and significantly reducing non-cutting cycle time.
Programmable Tailstock: Offers flexibility in machining longer shaft-type workpieces, featuring both rapid and slow advance functions.

Area of Application:

This machine has proven its excellence in large-scale and mass production settings, such as in the automotive industry and for the manufacturing of general machinery components.
