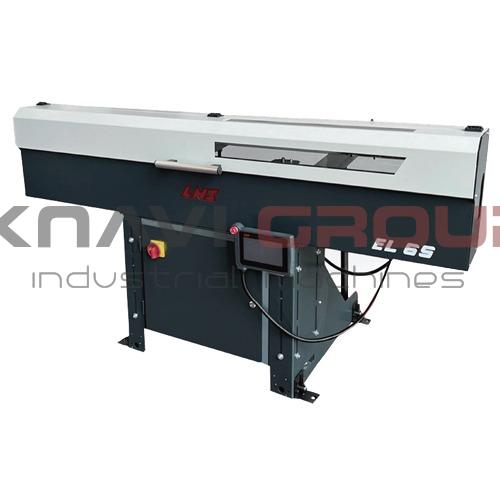

LNS EL65 1.3 Automatic Bar Feeder
The EL65 1.3 automatic bar feeder is high-performance equipment designed for the uninterrupted feeding of workpieces into CNC lathes.
Key Advantages:
Fully Electric Servo Drive: The innovative design eliminates the need for a pneumatic connection. This not only reduces compressed air consumption and keeps the workspace cleaner, but also allows the PLC and servo drive to perform ultra-precise feeding control. The "soft touch" function prevents impacts and protects the lathe's turret from damage.
Intelligent Photoelectric Sensor: The built-in optical system automatically measures the bar length and flawlessly detects the cutoff position, eliminating positioning errors and product defects.
Vertical Loading System: The specially designed vertical loading system for the EL65 series minimizes noise and vibration when loading new materials. This significantly enhances the overall stability of the unit and creates more comfortable and safe working conditions for operators.
Wide Processing Range: The equipment supports the processing of bars with diameters ranging from 5 to 65 mm. The standard maximum workpiece length is 1300 mm (optional up to 1600 mm), and the adjustable spindle height (905–1255 mm) ensures perfect compatibility with various CNC lathe models.
