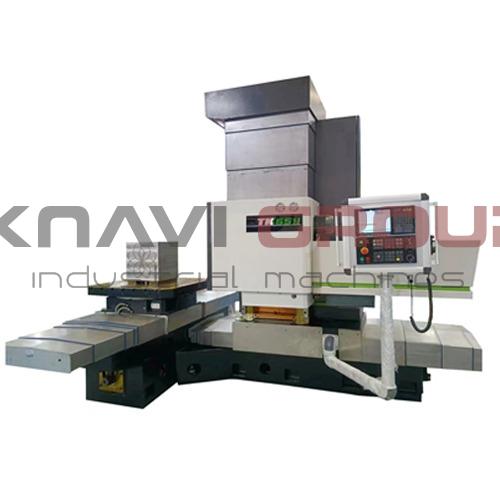

CNC Boring and Milling Machine TK6513
Price & Terms
Specifications
Basic feauturies
CNC
Indication and control
Working table
Headstock
Capability
Linear axes
Rotary axes
Feeds
Accuracy
Cutting fluid
Engines and power supply
Overall dimensions and weight
Peripherals
Tool measuring system
Workpiece measurement system
Equipment
Description
Key advantages of the CNC horizontal boring and milling machine model TK6513:
High rigidity and structural stability: The main large components (bed, table, column, spindle headstock) are made of high-quality cast iron and have undergone double thermal aging, guaranteeing high rigidity and vibration resistance.
Multifunctionality and versatility: The machine is capable of performing not only boring but also large-diameter milling and surface milling operations. Thanks to the ability to install angular, universal, and extended milling heads, along with a 360° rotary table, multi-sided machining of a part can be performed in a single setup.
Precision rolling and sliding guideways: The X and Z axes use composite guideways with hardened steel inserts, while the Y axis uses hardened guideways (HRC60±2). This ensures high load capacity, a low coefficient of friction, smooth motion, and long-term accuracy retention.
High-precision rotary table (B-axis): Equipped with an encoder, continuous indexing at any angle, an anti-backlash dual-gear drive, and a hydraulic braking system that locks the table for maximum stability during machining.
Modern CNC system and drives: The machine is equipped with a Siemens SINUMERIK 828D control system and digital servo drives, enabling simultaneous 4-axis machining, extensive programming capabilities, an intuitive interface, and high reliability.
Advanced lubrication and protection system: An automatic metered lubrication system for the guideways and ball screws. All guideways are protected by telescopic steel covers resistant to coolant and chip exposure.
Comprehensive safety system: Multi-level protection is implemented, including monitoring for hydraulic overheating, pressure loss, lack of lubrication, spindle and feed axis overload, as well as software and hardware limit switches.
Effective cooling and chip removal system: A built-in chain conveyor for chip removal (capacity 50 kg/min) with a collection bin, as well as an external coolant supply system (0.5 MPa pressure) featuring an enlarged tank (960 L) and a filtration system.
These characteristics make the TK6513 machine the optimal choice for machining large-sized parts (housings, molds, machine beds) in industries such as mechanical engineering, power generation, shipbuilding, oil and gas equipment manufacturing, and heavy industry.
