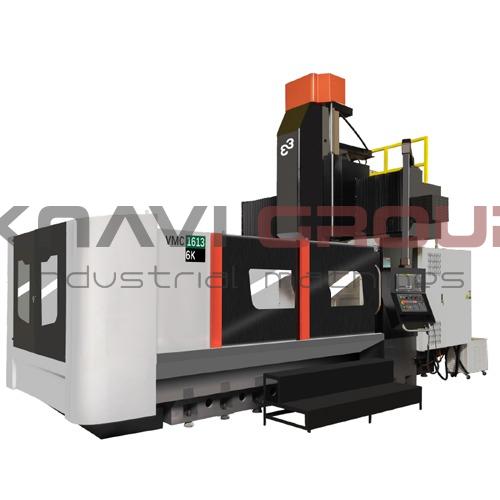

Gantry machining Center VMC-1613

CNC Fanuc 0i-MF Plus (3)
Working table size 1600mm x 1000mm
Feed travels 1600mm / 1300mm / 800mm

Main Configuration

Spindle taper
BT40
BBT-40
HSK-A63
BT50
BBT-50
HSKA100

Price & Terms

Price on Request

Specifications

Basic feauturies

X/Y guideways type Linear guidway
Z-axis guideway type Box guideway

CNC

CNC Fanuc 0i-MF Plus (3)

Working table

Working table size 1600mm x 1000mm
T-slots 7pcs / 22mm / 140mm
Max. weight of workpiece 2000kg

Spindle

Spindle drive Direct drive
Spindle cooling Oil cooling
Distance between columns 1300mm
Distance from vertical spindle nose to surface of working table 190mm / 990mm
Spindle speeds range
10000rpm
12000rpm
15000rpm
20000rpm
6000rpm
8000rpm
Spindle taper
BT40
BBT-40
HSK-A63
BT50
BBT-50
HSKA100
Spindle motor power
11kW
18.5kW
15kW
Spindle torque
70N⋅m
95.5N⋅m
118N⋅m
60N⋅m
236N⋅m

Automatic tool changer (ATC)

Tool magazine type Drum-type tool magazine
Tool changing type With robotic arm
Taper size
BT40
BBT-40
BT50
BBT-50
Tool magazine capacity
24pcs
30pcs
40pcs
60pcs
Max. tool diameter
150mm / 78mm
220mm / 105mm
Max. tool lenght
300mm
350mm
Max. tool weight
7kg
15kg

Feeds

Feed travels 1600mm / 1300mm / 800mm
Max. speed of traverse feeds 8000mm/min / 8000mm/min / 8000mm/min
Rapid traverse 24000mm/min / 24000mm/min / 15000mm/min
Type of electric motor Servomotor
Power of feed motors 4.5kW / 4.5kW / 4.5kW
X-axis transmission type Ball screw / Ø 50mm
Y-axis transmission type Ball screw / 50mm
Z-axis transmission type Ball screw / Ø 50mm

Cutting fluid

Water tank capacity 580L
Power of coolant pump motor 0.48kW

Overall dimensions and weight

Weight 14000kg
Overall length 5580mm
Overall width 3879mm
Overall height 4300mm

Peripherals

Tool measuring system

TS27R Renishaw
TS27R Renishaw
Tool measuring system : Renishaw TS27R , Repeatability accuracy : 0.001mm / 0.001mm / 0.001mm
Z-MT
Z-MT
Tool measuring system : Blum Z-MT , Repeatability accuracy : 0.0004mm / 0.0004mm / 0.0004mm

Workpiece measurement system

OMP60 Renishaw
OMP60 Renishaw
Workpiece measurement system : Renishaw OMP60 , Repeatability accuracy : 0.001mm / 0.001mm / 0.001mm
TC50
TC50
Workpiece measurement system : Blum TC50 , Repeatability accuracy : 0.0003mm / 0.0003mm / 0.0003mm

Chip conveyors

✅
STCC320
STCC320
Chip removal system : Scraper chip conveyor , Chip carrier : Presence
CC-CT Turbo
CC-CT Turbo
Chip removal system : Chain type chip conveyor , Chip carrier : Presence

Equipment

3-axes linear scale
✅
Air blow gun (Default)
✅
Air-conditioner for electrical cabinet (Default)
✅
Air reservoir system (Default)
✅
Automatic centralized oil lubrication (Default)
Automatic door opener
✅
Coolant gun (Default)
Disc oil and coolant separator
High pressure coolant pump
✅
Manual Pulse Generator (MPG) (Default)
Oil mist collector
Oil skimmer
✅
Rigid tapping function (Default)
✅
Spindle cone air blow device (Default)
✅
Spindle dust-proof air-sealing system (Default)
✅
Status tower light (Default)
✅
Tools box (Default)
✅
Work area lighting lamp (Default)
✅
Х/Y/Z axis bellows (Default)

Description

Gantry Machining Center VMC-1613

The VMC-1613 is a gantry machining center with a Z-axis box guideway design, intended for high-performance machining of complex and small parts, as well as large molds. The machine combines high rigidity, precision, flexibility, and environmental friendliness, meeting the modern requirements of the automotive and energy industries.

Key Features:

  • High Rigidity and Precision: The base is made of high-strength cast iron with an optimized ribbed structure, ensuring stability during high-torque cutting.

  • Powerful Spindle: Speed range up to 20,000 rpm. Standard configuration: BT-50 (6,000 rpm, 18.5 kW, torque 236 N·m). Optional spindle models include BT-40, BBT-40, BBT-50, HSKA63, and HSKA100.

  • Machining Efficiency: Capability for simultaneous heavy cutting and high-speed machining.

  • Spindle Cooling System: A precision oil chiller with temperature control extends spindle life and minimizes thermal deformation.

  • High-Performance Feed Drives: Premium-grade guideways from Japanese and German manufacturers. Optional linear encoders for all axes.

Applications: Large stamping dies, complex housing parts, aerospace components, energy equipment, and automotive mold tooling.
