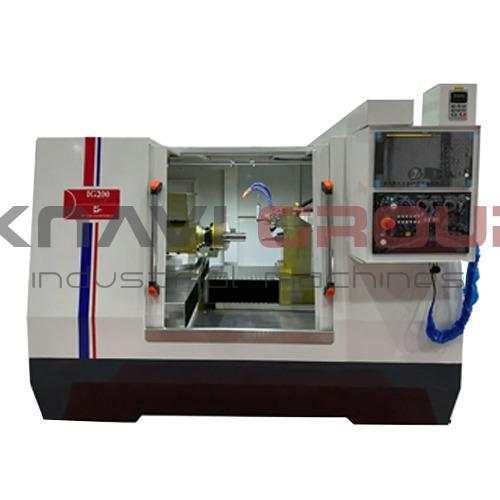

Internal Grinding Machine IG150

Series IG
Control CNC
Grinding Inner
Diameter of internal grinding 6mm — 150mm
Table stroke 540mm

Price & Terms

Price on Request

Specifications

Basic feauturies

Control CNC
CNC model Siemens
Grinding Inner

Capability

Distance between centers 540mm
Diameter of internal grinding 6mm — 150mm
Max. workpiece diameter 380mm

Grinding stone

Linear rotation speed of the grinding wheel 15m/sec

Working table

Swivel angle 2° / 15°
Feeding speed 0m/min — 15m/min
Table stroke 540mm

Headstock

Morse cone MT5
Spindle speeds range 0rpm — 1500rpm

Facing plate

Setting limits 0.001mm

Engines and power supply

Total motor power 25kW

Accuracy

Grinding roundnessОкруглость шлифования磨削真圆度 0.002μm
Best surface roughness of grinding 0.25μm

Overall dimensions and weight

Weight 3700kg
Overall length 2900mm
Overall width 2020mm
Overall height 1750mm

Equipment

✅
Automatic centralized oil lubrication (Default)
✅
Ball screw unit (Default)
Quantity: 2 pcs
Closed full cover with automatic door
Quantity: 1 pcs
✅
Diamond pen (Default)
Quantity: 1 pcs
Filter
Quantity: 1 set
✅
High pressure coolant pump (Default)
Hydraulic chuck
Quantity: 1 pcs
3-jaw chuck
✅
Internal Grinding Abrasive Tool (Default)
Quantity: 1 pcs
✅
Manual 3-jaws chuck (Default)
Quantity: 1 pcs
Material end detector
Quantity: 1 pcs
Oil mist collector
Quantity: 1 pcs
✅
Tools box (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)
Quantity: 1 pcs

Description

Key Advantages of the IG150 Internal Grinding Machine

1. High Machining Accuracy

  • Surface roughness up to Ra 0.25

  • Minimum movement increment along the X and Z axes: 0.001 mm

2. Wide Machining Range

  • Internal grinding of holes with diameters from 6 to 150 mm

  • Maximum grinding depth up to 150 mm

  • Capacity to machine parts with a diameter up to 380 mm over the bed

  • Spindle head swivel (forward 15°, backward 2°) for taper grinding

3. Advanced CNC System

  • Siemens CNC (Computer Numerical Control) system

  • Automatic grinding wheel wear compensation

  • Intuitive user interface

4. Precision Components

  • THK (Japan) or PMI (Taiwan) ball screws

  • Siemens servo motors for smooth and precise movement

  • Automatic lubrication system for all guideways and screws

  • High-quality cast iron bed with artificial aging (stress relieving)

5. Reliability and Durability

  • Monolithic bed made of high-quality cast iron

  • Natural aging of components to prevent deformation

  • Separated cooling system to eliminate vibrations

  • Continuous automatic lubrication of all moving parts
