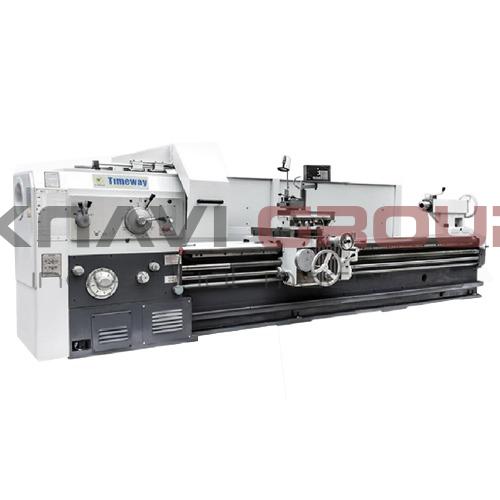

Manual lathe AL-800

Series AL
Max. swing diameter over bed 800mm
Max. swing over cross slide: 480mm
Max. weight of workpiece 3000kg
Recalculating price…

Price & Terms

Price on Request

Specifications

Capability

Max. swing diameter over bed
800mm
Max. swing over cross slide:
480mm
Lathe bed width
600mm
Max. weight of workpiece
3000kg
Distance between centers
1500mm — Maximum
2000mm — Maximum
3000mm — Maximum
4000mm — Maximum
5000mm — Maximum
6000mm — Maximum
7000mm — Maximum
8000mm — Maximum
Processing length
1350mm
1850mm
2850mm
3850mm
4850mm
5850mm
6850mm
7850mm

Headstock

Spindle speeds range
5.5rpm — 750rpm
Spindle speed steps ranges
18pcs
Spindle taper
Metric #120
Lathe Spindle Nose
C-11
Spindle motor power
15kW
Spindle bore diameter
100mm
140mm

Lathe chuck

Chuck size
400mm
Chuck
3-jaw chuck
Clamping type
Mechanical

Feeds

Range of longitudinal feeds
0.1mm/r — 24.32mm/r — 64pcs
Range of cross feeds
0.1mm/r — 24.32mm/r — 64pcs
Rapid traverse
4000mm/min

Threading range

Number of metric threads
50pcs
Range of metric threads
1mm — 240mm
Number of inch threads
26pcs
Range of inch threads
1T.P.I. — 14T.P.I.
Number of module threads
53pcs
Range of modular threads cutting
0.5module — 120module
Number of pitch threads
24pcs
Range of pitch threads
1D.P. — 28D.P.

Carriage

Swing angle of compound rest
90°
Top slide travel
200mm
Max. cross travel of lower slide
500mm
Tool shank
32mm

Tailstock

Max. travel of tailstock quill
250mm
Tailstock quill diameter
140mm
Taper
MT6

Engines and power supply

Voltage
380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight
5700kg
Overall length
3670mm
Overall width
1700mm
Overall height
1540mm

Peripherals

Digital Readout Unit (DRO)

DRO FAGOR 2V
DRO FAGOR 2V

Equipment

Chip collector tray
Chuck guard
Dead center
✅
Follow rest (Default)
Quantity: 1 pcs
Leadscrew guard
Live center
✅
Manual 3-jaws chuck (Default)
Quantity: 1 pcs
400mm
Manual 4-jaws chuck
Reduction sleeve
✅
Steady rest (Default)
Quantity: 1 pcs
Tool post guard
✅
Tools box (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)
Quantity: 1 pcs

Description

TIMEWAY AL-800 Lathe Machine

1. Fundamental Rigidity and Vibration Resistance

  • Heavy-duty bed: The base and bed are cast from high-quality modified cast iron, ensuring exceptional vibration damping.

  • Wide guideways: The use of massive guideways guarantees the stability of the slides even during interrupted cutting and heavy metal removal.

2. Extended Machining Zone

  • Large dimensions: The AL-800 model allows for the machining of large-diameter and extra-long parts (distance between centers up to 8 m).

  • Reinforced tailstock: The tailstock features a large-diameter quill that provides reliable support for long and heavy workpieces, preventing deflection during machining.

3. Powerful and Reliable Spindle Assembly

  • Wide speed range: The machine is equipped with a gearbox that provides 18 forward spindle speed steps and 6 reverse steps, allowing flexible adjustment of cutting parameters for various materials (from aluminum to heat-resistant steels).

  • Reliable mounting: The standard C11 spindle taper ensures rigid fixation of heavy chucks or faceplates.

4. Versatility of Technological Capabilities

  • The machine is designed to perform a full spectrum of turning operations: longitudinal and cross turning, drilling, reaming, counterboring, as well as cutting metric, inch, and modular threads, thanks to a wide range of feed rates.
