YangLi

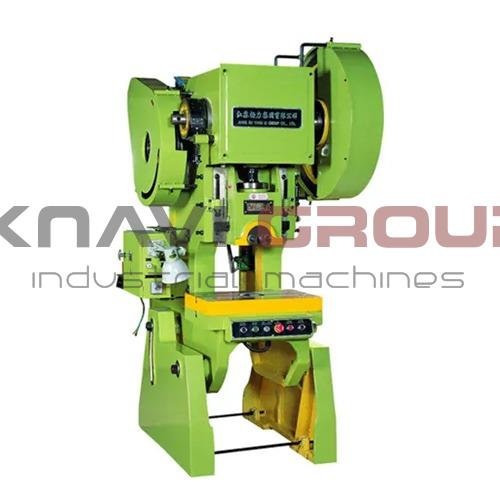

Punching press J23-16B

Series J
Press type C-frame press
Control Manual
Max. pressing force 16tn / 160kN
Slide stroke 70mm
Recalculating price…

Price & Terms

Price on Request

Specifications

Basic feauturies

Press type
C-frame press
Control
Manual
Type
Mechanical

Capability

Max. pressing force
16tn / 160kN
Slide stroke
70mm
Slider strokes number per minute
125times/min
Closing height
170mm
Closing height adjustment
45mm

Working area

Columns quantity
2pcs
Working table size
320mm x 480mm
Workbench unloading hole size
210mm
Space between tie bars
220mm

Engines and power supply

Motor power
1.5kW
Voltage
380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight
1100kg
Overall length
1150mm
Overall width
900mm
Overall height
1910mm

Equipment

✅
Fastening bolts (Default)
Quantity: 1 set
✅
Grease gun (Default)
Quantity: 1 pcs
✅
Remote controller (Default)
Quantity: 1 pcs
✅
Tools box (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)
Quantity: 1 pcs

Description

Key Advantages of the J23-16B Press:

  • Versatile Application
    This press belongs to the category of universal machines for cold stamping of thin sheet metal. It efficiently performs a wide range of operations, such as blanking and hole punching, making it an ideal solution for various manufacturing tasks.

  • High Frame Rigidity and Vibration Resistance
    The press features a one-piece cast frame, ensuring excellent vibration resistance during operation. Additionally, the design allows the frame to be tilted at an angle of up to 25°, significantly facilitating the gravity-assisted removal of finished parts and scrap from the stamping zone.

  • Reliable Overload Protection
    The press ram features a cast box-type structure and is equipped with a highly sensitive frangible safety device.

  • Ease of Maintenance and Adjustment

The crankshaft is mounted horizontally, and the gears feature an open design, making inspection and maintenance as convenient as possible.

The press utilizes four-sided, elongated triangular guides that are easy to adjust with high precision.

The die shut height is manually adjustable, and the current value is clearly displayed on a dedicated scale.

  • Convenient Control and Installation
    The press is equipped with a foot-operated lever and pedal control system, allowing the operator to keep both hands free for feeding the workpiece and removing the finished part. The package includes anchor bolts for the secure and reliable mounting of the equipment to the foundation.
