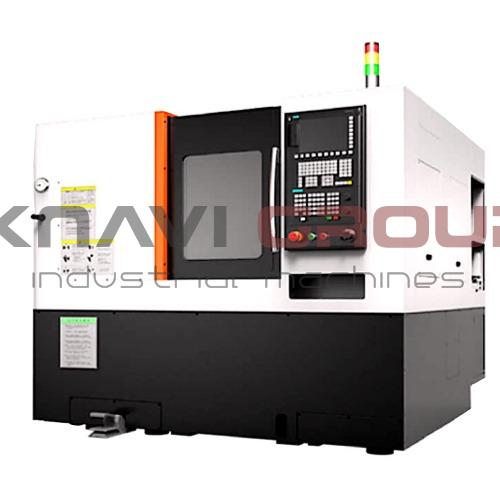

Slant Bed CNC Lathe T06M-500

Series T
CNC Fanuc 0i-TF Plus (5)
Max. swing over cross slide: 250mm
Processing length 365mm
Lathe Spindle Nose A2-5

Price & Terms

Price on Request

Specifications

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 30°
X/Z guideways type Linear guidway

CNC

CNC Fanuc 0i-TF Plus (5)

Capability

Max. swing diameter over bed 450mm
Max. swing over cross slide: 250mm
Processing length 365mm

Main spindle

Spindle drive Direct drive
Spindle speeds range 5000rpm
Lathe Spindle Nose A2-5
Spindle bore diameter 49mm
Bar Size 35mm
Spindle motor power 13.4kW
Lathe chuck 152.4mm / Hydraulic / 3-jaw chuck

Feeds

X-Axis travel 165mm
X-axis transmission type Ball screw
Z-Axis travel 430mm
Z-axis transmission type Ball screw
Rapid traverse 20000mm/min / 24000mm/min
Positioning accuracy 0.003mm / 0.003mm
Repeatability accuracy 0.004mm / 0.004mm

Carriage

Tool post Lathe turret
Turret type Driven

Tools

Tooling Live tooling

Tailstock

Tailstock type Hydraulic
Morse cone MT4

Cutting fluid

Tank capacity 180L

Lubrication system

Lubrication system Full-automatic

Hydraulic system

Hydraulic Tank Capacity 20L
Max. pump pressure 5MPa

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 3400kg
Overall length 2475mm
Overall width 1692mm
Overall height 1645mm

Peripherals

Chip conveyors

CC-CT Turbo
CC-CT Turbo
Chip removal system : Chain type chip conveyor , Chip carrier : Presence

Equipment

Air blow gun
Quantity: 1 pcs
✅
Air-conditioner for electrical cabinet (Default)
✅
Anchor bolt set (Default)
✅
Automatic centralized oil lubrication (Default)
✅
Bar feeder interface (Default)
Coolant supply through center of spindle
✅
Hydraulic chuck (Default)
Quantity: 1 pcs
3-jaw chuck
✅
Hydraulic Unit (Default)
✅
Manual Pulse Generator (MPG) (Default)
Oil mist collector
✅
Oil skimmer (Default)
Quantity: 1 pcs
✅
Parts catcher (Default)
Quantity: 1 pcs
✅
Powered tool holder (±0°) (Default)
Quantity: 1 pcs
✅
Powered tool holder (±90°) (Default)
Quantity: 1 pcs
✅
Safety guard (Default)
✅
Status tower light (Default)
✅
Tools box (Default)
✅
Work area lighting lamp (Default)

Description

Key Advantages of the T06M-50

1. High-Performance Control System

  • Modern Fanuc 0i-TF Plus system — a world leader in CNC technology

  • High reliability and ease of programming

  • Extensive automation capabilities

2. Powerful Electric Spindle

  • 13.4 kW spindle motor ensures high performance

  • Maximum spindle speed: 5000 rpm

  • A2-5 spindle nose — the standard for quick tool changes

  • NSK P4 class bearings — high precision and durability

3. Precision Machining Accuracy

  • Positioning accuracy: ±0.004 mm

  • Positioning repeatability: ±0.003 mm

  • Ensures the manufacturing of parts with strict quality requirements

4. Universal Turret Head

  • 12 positions for quick tool changes

  • Live tooling — enables milling operations

  • 20×20 mm tool holders — standard size

5. High-Quality Components

  • THK class P linear guideways

  • THK class C3 ball screws

  • NACHI class P4 bearings

  • Schneider Electric electrical components

6. Servo-Driven Tailstock

  • MT-4 servo-driven tailstock

  • Precise positioning for machining long parts

  • Automatic control

7. Efficient Chip Removal System

  • Rear chip conveyor with a collection bin

  • Oil separator and oil mist collector

  • Coolant system with a 180-liter tank
