Сold heading machine MWNF24B6SL

Max. cut-off length 50mm
Max. cut-off dia 24mm
Main slide stroke 200mm
Recalculating price…

Price & Terms

Price on Request

Specifications

Basic feauturies

Modification
6-Blow / 6-Die
Production capacity
55pcs/min — 75pcs/min

Processing parameters

Max. cut-off length
50mm
Max. cut-off dia
24mm

Working area

Main slide stroke
200mm
Main die size
100mm
Ejection length
70mm

Engines and power supply

Motor power
45kW

Overall dimensions and weight

Weight
32000kg
Overall length
5300mm
Overall width
2800mm
Overall height
1900mm

Equipment

✅
Machine equipment for workpiece forming (Default)
Quantity: 1 set
✅
Safety guard (Default)
Quantity: 1 pcs
✅
Wire decoiler (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)

Description

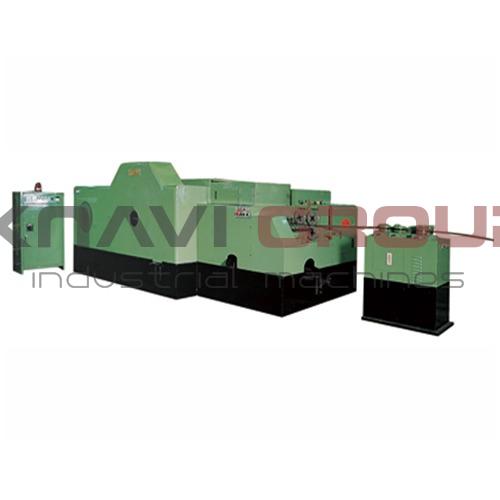

MWNF24B6SL Cold Heading Press

The MWNF24B6SL press is designed for cold heading of parts from bar stock (wire) with a diameter up to 24 mm. It is used for mass production of fasteners and other solid complex-shaped parts.

Maximum part length (heading length) — 50 mm, kick-out length — 70 mm. Main ram stroke — 200 mm.

Key Features:

  • High heading force (270 tons) — allows forming large parts from medium-carbon and alloy steels

  • Output up to 75 pcs/min — optimal for serial and mass production

  • Robust construction — crankshaft made of forged 42CrMo steel, bed made of high-strength ductile cast iron

  • High-quality components — NSK bearings, AirTAC pneumatics, Schneider low-voltage electrical equipment

  • Wear-resistant tooling parts — Cr12MoV with vacuum heat treatment

  • Complete standard package — from wire straightening to finished part output, including PLC cabinet with diagnostics

  • Safety — fully enclosed protective guard
