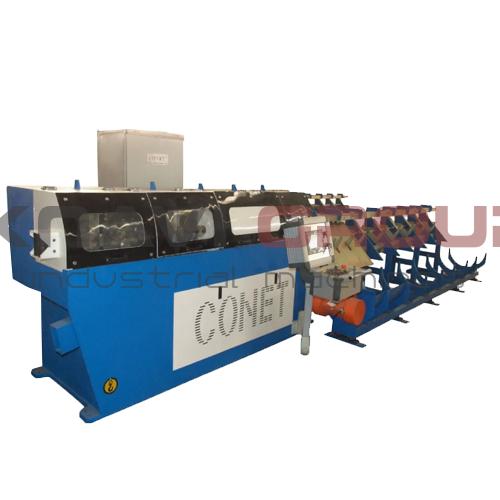

Straightening and cutting machine TQ3-12
Price & Terms
Specifications
CONET TQ3-12Processing parameters
- Fuction
- Straightening / Cut-off
- Wire diameter
- 3mm — 12mm
- Processing length
- 50mm — 12000mm
- Wire feeding speed
- 45m/min — 180m/min
- Straightening accuracy
- 1mm
Engines and power supply
- Servo shears
- 5.5kW
- Straightening motor
- 2.22kW
- Voltage
- 380V / 50Hz
Overall dimensions and weight
- Weight
- 3500kg
- Overall length
- 1mm
- Overall width
- 1mm
- Overall height
- 1mm
Equipment
Description
Key advantages of the TQ3-12:
High productivity: The machine provides a maximum wire straightening speed of up to 180 m/min and a high cutting speed of up to 600 cuts per minute, significantly increasing the overall production volume.
High processing accuracy: The sensor-based length measurement system, combined with a servo cutting motor, guarantees a workpiece length accuracy within ±1 mm, which is critically important for subsequent production stages (e.g., when welding wire meshes).
Reliability and durability: The equipment is designed for long-term continuous operation under high loads, featuring a low failure rate and stable performance in standard operating mode.
Modern automation and ease of control: Key parameters (drawing speed, straightening roller speed) are adjusted via an intuitive touchscreen using variable frequency drives (VFDs). Only 1 operator is required to operate and service the machine.
Versatility of processed materials: The machine can process low-carbon wire and rebar with a diameter of 3 to 12 mm, as well as high-carbon and alloy steel with a diameter of 3 to 8 mm. It is suitable for processing both smooth and ribbed (periodic profile) surfaces.
Flexibility of settings: The cutting length is smoothly adjustable within a wide range from 0.2 to 6 meters, allowing for quick adaptation of the equipment to various production tasks without complex retooling.
Compliance with international quality standards: The equipment is SGS and ISO9001 certified, and CONET positions its products as meeting high European standards of reliability and quality.
