QIPANG

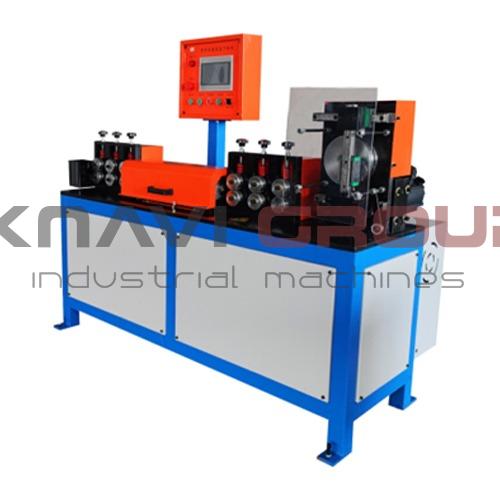

Straightening and cutting machine QP-09
Series
QP
Fuction
Straightening / Cut-off
Wire diameter
0.2mm — 0.9mm
Processing length
10mm — 9999.99mm
Recalculating price…
Price & Terms
Price on Request
Specifications
QIPANG QP-09CNC
- CNC language
- Chinese / English
Processing parameters
- Fuction
- Straightening / Cut-off
- Wire diameter
- 0.2mm — 0.9mm
- Processing length
- 10mm — 9999.99mm
- Production capacity
- 200pcs/min
- Wire feeding speed
- 10m/min
- Number of feeding rollers
- 3pr.
- Number of straightening rollers
- 4pr.
- Length tolerance
- 0.2mm
Engines and power supply
- Main feed motor
- 1.5kW
- Straightening motor
- 1.5kW
- Voltage
- 380V / 50Hz / Three phase / AC
Overall dimensions and weight
- Weight
- 950kg
- Overall length
- 1500mm
- Overall width
- 800mm
- Overall height
- 1300mm
Equipment
Bars rack
Quantity:
1 pcs
✅
Operational panel
(Default)
Quantity:
1 pcs
✅
Straightening steel rollers
(Default)
Quantity:
1 set
✅
Tools box
(Default)
Quantity:
1 pcs
Description
Straightening and Cutting Machine QP-09
Purpose and Main Functions
- The machine is designed for automatic straightening and cutting of metal wire.
- It is used in production processes that require high precision and speed in processing metal workpieces for manufacturing complex-shaped parts.
Technical Specifications (Approximate)
- Processable material: Metal wire (steel, stainless steel).
The equipment features high precision.
Design Features
A sturdy frame and structure ensure stability and reduced vibration during operation.
- Process automation includes an automatic wire feeding and straightening system, minimizing operator involvement.
- Compact dimensions are optimized for easy integration into production lines.
Industrial Applications
- The machine is suitable for use in the automotive, construction, and metalworking industries, where precise wire cutting is required for manufacturing fasteners, reinforcement elements, and other parts.
Commercial Offer Request
Product Information
Brand
QIPANG
Model
QP-09
Series
QP
Price
Price on Request
Equipment Package
Operational panel
Straightening steel rollers
Tools box
