SGSK

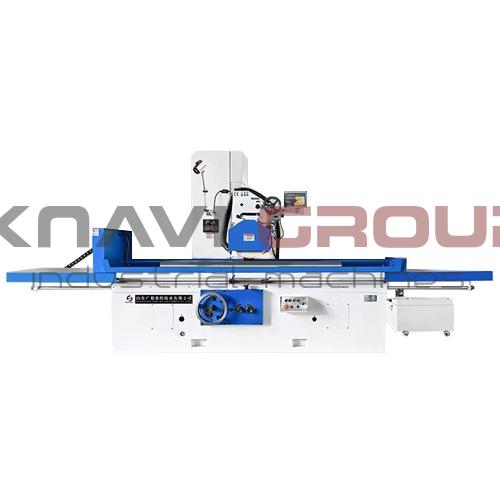

Surface Grinding Machine M7180

Series M71
Working table size 1250mm x 800mm
Feed travels 1350mm / 840mm / 600mm
Spindle motor power 11kW

Price & Terms

Price on Request

Specifications

Working table

Working table size 1250mm x 800mm
T-slots 5pcs / 18mm
Distance from spindle center line to surface of the table 800mm
Table rapid move speed 3m/min — 25m/min

Grinding stone

Grinding wheel size 400mm x 127mm x 40mm
Grinding wheel rotation speed 1440rpm

Feeds

Feed travels 1350mm / 840mm / 600mm
Vertical movement by hand wheel 0.01mm / 0.5mm

Accuracy

Machining Accuracy 0.005mm
Best surface roughness 0.63μm/Ra

Engines and power supply

Spindle motor power 11kW
Lubricatingoil pump power 5.5kW
Rapid lifting motor 0.55kW
Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 6300kg
Overall length 3800mm
Overall width 2900mm
Overall height 2800mm

Peripherals

Digital Readout Unit (DRO)

DRO SINO SDS6-2V
DRO SINO SDS6-2V
Quantity of controlled axis : 2pcs , Controlled axis : X-axis / Z-axis

Equipment

✅
Balancing disk (Default)
Quantity: 1 pcs
✅
Grinding wheel (Default)
Quantity: 1 pcs
✅
Magnetic plate (Default)
Quantity: 1 pcs
✅
Tools box (Default)
✅
Work area lighting lamp (Default)

Description

Key Features:

Precision Alloy Steel Lead Screw
The machine’s lead screw is made from high-quality alloy steel and undergoes rigorous machining and heat treatment, ensuring exceptional strength, wear resistance, and dimensional stability—even under heavy-duty operation.

Vertical Grinding Head Lift
The vertical movement of the grinding head significantly reduces non-cutting (idle) time, boosting overall machining efficiency and productivity.

Hydraulic + Manual Cross Travel
The grinding head’s cross feed is driven by a hydraulic motor but can also be operated manually when needed, offering flexibility for setup, fine adjustments, and precision alignment.

Recommended for: precision toolrooms, automotive manufacturing, mold and die shops, and any application requiring high-accuracy flat surface grinding.
