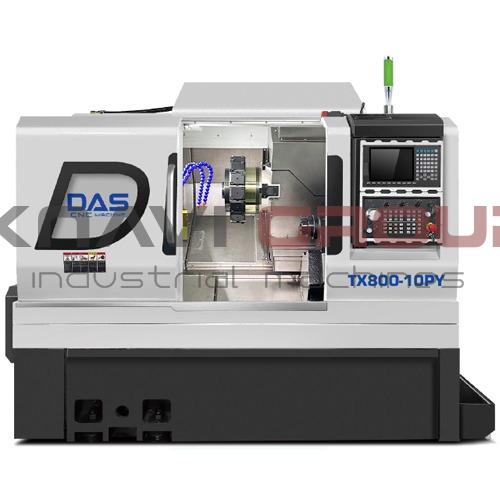

Turning center TX800-10PY

Max. swing diameter over bed 600mm
Max. swing over cross slide: 420mm
Spindle speeds range 0rpm — 2500rpm
Bar Size 75mm

Main Configuration

CNC
Syntec 22TB
Fanuc 0i-TF Plus .

Price & Terms

Price on Request

Specifications

Basic feauturies

CNC lathe type Slant-bed CNC lathe
Y-axis Presence
C axis Presence
X/Z guideways type Linear guidway

CNC

CNC
Syntec 22TB
Fanuc 0i-TF Plus .

Capability

Max. swing diameter over bed 600mm
Max. swing over cross slide: 420mm
Processing length 520mm

Main spindle

Spindle speeds range 0rpm — 2500rpm
Lathe Spindle Nose A2-8
Spindle bore diameter 86mm
Bar Size 75mm
C-axis (main spindle) resolution 0.001°
Spindle motor power 15kW
Lathe chuck 254mm / Hydraulic / 3-jaw chuck / throught hole

Feeds

X-Axis travel 210mm
X-axis transmission type Ball screw
Z-Axis travel 540mm
Z-axis transmission type Ball screw
Y-Axis travel 70mm
Rapid traverse 20000mm/min / 15000mm/min / 20000mm/min
Positioning accuracy 0.005mm / 0.005mm
Repeatability accuracy 0.01mm / 0.01mm

Feed motor

Power of feed motors 3.1kW / 3.1kW / 3.1kW

Carriage

Tool post Lathe turret
Turret type Driven

Tools

Tools quantity 15pcs
Tool shank 25mm x 25mm
Tool shank diameter 40mm
Motor power 0.75kW
Live tooling speed 3000rpm

Tailstock

Tailstock type Hydraulic
Morse cone MT5
Tailstock stroke 470mm

Cutting fluid

Tank capacity 137L

Lubrication system

Lubrication system Full-automatic
Oil tank capacity 4L

Hydraulic system

Motor power of hydraulic station 1.5kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 6000kg
Overall length 2900mm
Overall width 2000mm
Overall height 2000mm

Peripherals

Chip conveyors

CC-CT Turbo
CC-CT Turbo
Chip removal system : Chain type chip conveyor , Chip carrier : Presence

Tool measuring system

HPMA Renishaw
HPMA Renishaw
Tool measuring system : Renishaw HPMA , Repeatability accuracy : 0.008mm

Equipment

Air-conditioner for electrical cabinet
✅
Automatic centralized oil lubrication (Default)
Automatic door opener
✅
Drilling tool holder (Default)
Quantity: 3 pcs
✅
External turning tool holder (Default)
Quantity: 2 pcs
✅
Hydraulic chuck with through hole (Default)
Quantity: 1 pcs
Ø254
Oil mist collector
Oil skimmer
Parts catcher
✅
Powered tool holder (±0°) (Default)
Quantity: 2 pcs
ER32
✅
Powered tool holder (±90°) (Default)
Quantity: 2 pcs
ER32
✅
Safety guard (Default)
✅
Set of soft jaws (Default)
Quantity: 1 set
✅
Status tower light (Default)
Tool Holder
Quantity: 1 pcs
✅
Tools box (Default)
✅
Work area lighting lamp (Default)

Description

TX800-10PY Turning-Milling Machining Center

High-performance CNC turning-milling machining center designed for complex machining of intricate parts. The model is equipped with a 15-station BMT55 Y-axis direct-drive power turret, allowing turning and milling operations in a single setup. This eliminates setup errors and significantly reduces machining time.

Key Advantages:

  • Precision High-Speed Axes — The X, Z, and Y axes are equipped with servo motors (3.1 kW) and precision R4010 ball screws (HIWIN, Taiwan). Travel speeds for X/Z/Y axes and tailstock: 20/20/15/20 m/min. Positioning accuracy: ±0.005 mm, minimum system resolution: 0.001 mm.

  • High-Precision Linear Guides — INA45 roller linear guides (Germany) with 6 sliders on the X-axis and 4 extended sliders on the Z-axis ensure excellent contouring accuracy, low friction, and long service life.

  • Powerful Powered Tools — Direct-drive power turret with 8.8 kW power (10,000 rpm).

  • Powerful and Precise Spindle — A2-8 spindle (10 inch) with a bar hole diameter of 86 mm and maximum bar capacity of 75 mm. High-quality FAG/NSK bearings (Germany/Japan) guarantee high machining accuracy and long-term stability.

  • Reinforced Tailstock — Programmable hydraulic tailstock with MT5 taper and maximum travel of 470 mm provides reliable support for long workpieces. Optional servo tailstock available.

Applications:

Designed for high-precision complex machining of intricate parts in various industries: general machinery, automotive, component manufacturing, medical equipment, and power engineering. Particularly effective for parts requiring both turning and milling: shafts with keyways and grooves, flanges with holes, eccentrics, complex bushings, and rotating housing parts.
