Home / Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring forming machines / 12-axis CNC spring forming machine YF-1225
YFJX

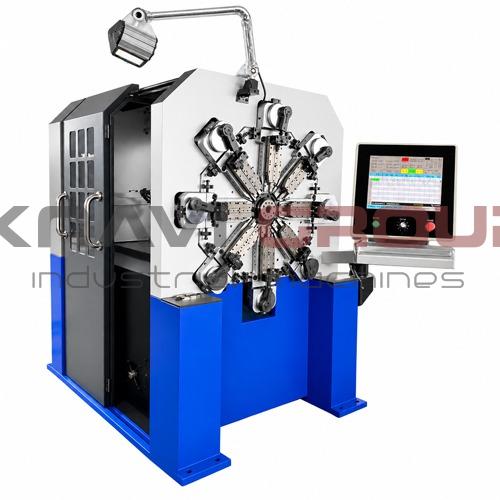

12-axis CNC spring forming machine YF-1225

Series YF
Quantity of controlled axis 12pcs + 3pcs
Type of spring Tension / Torsion / Double torsion / Wire bending / Suspension Spring
Spring-forming machine variation Сamless machine
Wire diameter 0.4mm — 2.5mm

Price & Terms

Price on Request

Specifications

Basic feauturies

Quantity of controlled axis 12pcs + 3pcs
Type of spring Tension / Torsion / Double torsion / Wire bending / Suspension Spring
Spring-forming machine variation Сamless machine

CNC

CNC language Chinese / English

Processing parameters

Wire diameter 0.4mm — 2.5mm
Direction of coiling Right + Left
Wire feeding speed 0m/min — 120m/min
Wire feed value 0.01mm — 10000mm

Controlled axes

Sliders axis 8pcs x 0.75kW
Wire feed axis 1pcs x 2.7kW
Core axis 1pcs x 0.75kW
Wire rotary axis 1pcs x 2.7kW
Spinner 1pcs x 0.75kW

Engines and power supply

Total motor power 12.9kW
Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 1500kg
Overall length 1450mm
Overall width 1400mm
Overall height 1650mm

Peripherals

Wire feeders

✅
YF-120
YF-120
Type : Full-automatic , Loading weight : 120kg

Equipment

✅
Fastening bolts (Default)
Quantity: 1 set
✅
Probe (Default)
Quantity: 1 pcs
Spinner
✅
Tooling for coiling (Default)
Quantity: 1 set
✅
Tools box (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)
Quantity: 1 pcs

Description

YF-1225 12-Axis CNC Camless Multiformer

Design: Utilizes a unique camless design.
Drive System: Each work station is equipped with its own servo motor, ensuring independent and precise control.
Quality Control: Equipped with an in-process accuracy tracking system to guarantee high product quality.
Manufactured Products: The machine is capable of producing a wide range of products:

  • Double-torsion springs
  • Compression springs
  • Battery springs
  • Flat springs
  • Various complex-shaped springs
    Key Advantages: Provides high precision, quick setup, and operational reliability.
