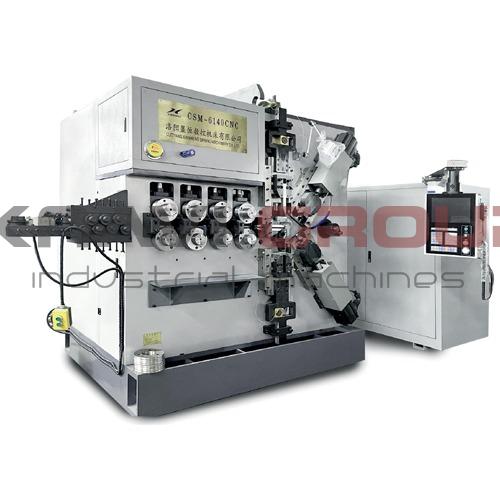

6-axis CNC spring coiling machine CSM-6140CNC

Series CSM

Quantity of controlled axis 6pcs

Spring diameter 180mm

Wire diameter 6mm — 14mm

Wire feeding speed 65m/min

OD control axis 5.5kW / 5.5kW

Price & Terms

Price on Request

Specifications

Basic feauturies

Quantity of controlled axis 6pcs

Type of spring Compression

CNC

Spring coiling machine computer ARCUCHI

CNC language Chinese / English

Interactive programming Yes

Processing parameters

Spring diameter 180mm

Wire diameter 6mm — 14mm

Wire feeding speed 65m/min

Direction of coiling Right + Left

Number of feeding rollers 4pr.

Wire feeding wheel pressing mode Pneumatic

Controlled axes

Outer diameter control mode Two curves (individual motor control)

OD control axis 5.5kW / 5.5kW

Wire feed axis 30kW

Pitch axis 5.5kW

Cutting axis 15kW / 15kW

Engines and power supply

Voltage 360V / 50Hz

Total motor power 76.5kW

Overall dimensions and weight

Weight 17000kg

Overall length 3200mm

Overall width 1800mm

Overall height 2450mm

Peripherals

Wire feeders

✅

ZL-2000

Type : Full-automatic , Loading weight : 2000kg , Motor power : 1.5kW

Equipment

First coiling assistance equipment

✅

Left-direction coiling knife rest (Default)

Quantity: 1 pcs

✅

Probe (Default)

Quantity: 1 pcs

✅

Right-direction coiling knife rest (Default)

Quantity: 1 pcs

✅

Tooling for coiling (Default)

Quantity: 1 set

8mm / 9mm / 10mm / 11mm / 12mm / 13mm / 14 mm / 15 mm / 16mm

✅

Tools box (Default)

Quantity: 1 pcs

✅

Work area lighting lamp (Default)

Quantity: 1 pcs

✅

Автоматическая смазка направляющих (Default)

Quantity: 1 pcs

Description

High Rigidity and Durability: Key large-sized machine components are made of high-strength materials that are resistant to loads.
Reliable Components: The machines are equipped with Yaskawa (Japan) servomotors and drivers, guaranteeing stable and reliable quality.
High Precision and Low Noise: Planetary gear reducers are used in the transmission mechanisms, which helps reduce noise and improve winding accuracy.
Productive and Advanced Tooling: A pneumatic-hydraulic system is used for wire forming, which increases roller pressure and thus improves forming quality.
Versatility: The equipment can work with various materials, including carbon steel, alloy steel, and stainless steel.
