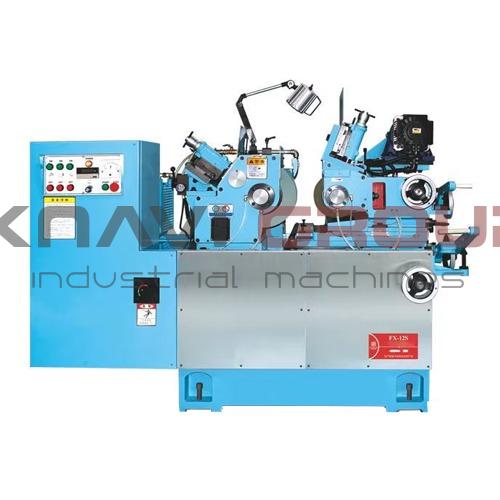

Centerless Grinding Machine FX-12S

Series FX
Control Manual
Grinding external
Grinding length 150mm
Max. workpiece diameter 40mm
Recalculating price…

Price & Terms

Price on Request

Specifications

Basic feauturies

Control
Manual
Grinding
external

Capability

Grinding length
150mm
Max. workpiece diameter
40mm

Grinding stone

Max. size of grinding wheel
305mm x 210mm x 150mm

Headstock

Spindle speeds range
1950rpm

Engines and power supply

Total motor power
8kW

Overall dimensions and weight

Weight
2000kg
Overall length
1800mm
Overall width
1400mm
Overall height
1450mm

Equipment

✅
Automatic centralized oil lubrication (Default)
Automatic feeder
Balancer
Balancing disk
✅
Coolant system (Default)
✅
Diamond pen (Default)
Quantity: 1 pcs
✅
Grinding wheel (Default)
Quantity: 1 pcs
✅
Grinding wheel motor (Default)
✅
Hydraulic Unit (Default)
Magnetic separator and paper filter
✅
Tools box (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)
Quantity: 1 pcs
Work conveyor

Description

Key Advantages of the ANTS FX-12S Centerless Grinding Machine:

  • Exceptional Precision
    The machine delivers exceptional machining accuracy, guaranteeing part roundness of ≤0.001 mm. This makes it an ideal solution for manufacturing components with tight geometric tolerances and stringent surface finish requirements.

  • Versatile Grinding Methods
    The machine supports two primary grinding methods, as well as a combination of both:
    – Through-feed grinding: for machining long cylindrical parts, short shafts without center holes, and bushings.
    – Plunge grinding: for parts with complex profiles, including shoulders, tapers, and spheres.

  • Wide Range of Machinable Parts
    The machine can efficiently grind workpieces with diameters ranging from 0.5 to 40 mm, meeting the diverse needs of various industries.

  • Ergonomic Control and Micron-Level Adjustment
    The machine is equipped with ergonomic handwheels featuring a clear micrometer scale. The fine adjustment resolution for the regulating wheel and worktable is 0.001 mm per division, which significantly simplifies operator tasks, accelerates the setup process, and minimizes the risk of human error.

  • Structural Stability and Reliability
    The machine features a heavy-duty, vibration-resistant bed. The regulating wheel drive offers stepless speed adjustment from 0 to 320 rpm, ensuring smooth and stable workpiece feed as well as superior surface finish quality.
