Surface Grinding Machine M7170Ax1250
Price & Terms
Specifications
HDCNC M7170Ax1250Basic feauturies
- Control
- PLC
Working table
- Working table size
- 1250mm x 700mm
- Max. load
- 1100kg
- Distance from spindle center line to surface of the table
- 700mm
- Table longitudinal travel (X-axis)
- 200mm — 1350mm
- Table rapid move speed
- 3m/min — 27m/min
- T-slots
- 3pcs / 22mm
Headstock
- Spindle speeds
- 1450rpm
- Spindle motor power
- 11kW
Grinding stone
- Grinding wheel size
- 400mm x 50mm x 203mm
Transverse movement of the grinding head
- Continuous feeding speed
- 0.5m/min — 4.5m/min
- Cross moving
- 3mm/tooth — 30mm/tooth
- Crossfeed handwheel
- 0.02mm
Vertical movement of the grinding head
- Speed of the vertical feed rapid movement
- 400mm/min
- Vertical movement by hand wheel
- 0.005mm / 0.515mm
Accuracy
- Best surface roughness
- 0.63μm/Ra
Engines and power supply
- Total motor power
- 19.75kW
- Voltage
- 380V / 50Hz / Three phase / AC
Overall dimensions and weight
- Weight
- 6200kg
- Overall length
- 3600mm
- Overall width
- 1900mm
- Overall height
- 2430mm
Peripherals
Digital Readout Unit (DRO)
Equipment
Description

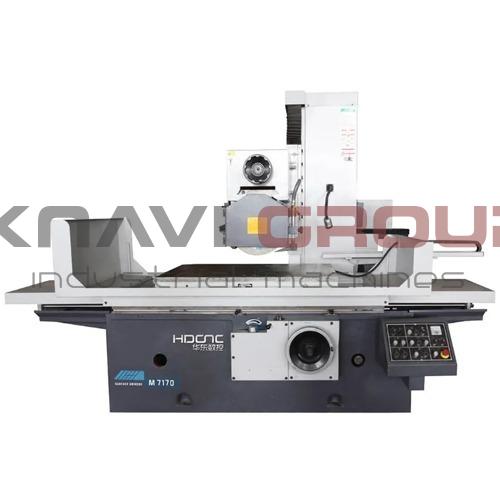

Surface Grinding Machine M7170
The machine is designed for high-performance machining of workpieces made of metal, cast iron, and other materials. It is an optimal solution for heavy-duty cutting, mass production, and repair operations in the automotive, machine-building, tooling, and die/mold industries.
Key Features:
High Power and Rigidity – Reinforced bed made of high-strength cast iron, optimized for heavy cutting loads and vibration damping.
Longitudinal Feed (Hydraulic) – Smooth table speed adjustment from 3 to 27 m/min.
Cross Feed of the Grinding Head – Precision ball screw drive: continuous feed (0.5–4.5 m/min) or rapid traverse (up to 400 mm/min).
Vertical Feed – Manual (handwheel graduation 0.005 mm) or motor-driven (rapid traverse 400 mm/min).
Enhanced Accuracy and Surface Finish – Achievable surface roughness Ra 0.63 µm.
Forced Lubrication Guideways – Extended machine service life.
Spindle – 1450 rpm, grinding wheel motor power – 11 kW.
