Swiss-type CNC lathe XE20NH

Series XE
Linear axis number 5pcs / X1 / X2 / Y1 / Z1 / Z2
Modification Dual spindles swiss-type lathe
Machining range diameter (spindle/subspindle) 20mm / 20mm
Max. processing length 160mm / Removable Rotary Guide Bush
Recalculating price…

Price & Terms

Price on Request

Specifications

Basic feauturies

Linear axis number
5pcs / X1 / X2 / Y1 / Z1 / Z2
Total tools quantity
18pcs
Modification
Dual spindles swiss-type lathe
CNC
Fanuc 0i-TF Plus

Processing parameters

Machining range diameter (spindle/subspindle)
20mm / 20mm
Max. processing length
160mm / Removable Rotary Guide Bush

Main spindle

Spindle drive
Direct drive
Spindle cooling
Oil cooling
Spindle speeds range
200rpm — 10000rpm
Spindle bore diameter
25mm
C axis
0.001°
Motor power
2.2kW / 3.7kW

Back spindle

Spindle drive
Direct drive
Spindle cooling
Oil cooling
Spindle speeds range
200rpm — 8000rpm
Spindle bore diameter
24mm
C axis
0.001°
Motor power
1.5kW / 2.2kW

Cross driven tools main spindle

Cross driven tools
4pcs / ER16 / 6000rpm
Max. drilling diameter
10mm
Tapping capacity
M8
Slotting size
1.5mm x 4.0mm
Motor power
1kW

Main spindle O.D. turning tools

Tool seat arrangement
Upside tool holder
Tool number
6pcs
Tool Size
12mm x 12mm

Main spindle end face tools

End-face fixed tools
5pcs / ER16 / 25mm
Max. drilling diameter
10mm
Tapping capacity
M8

Sub-spindle end face tools

End-face driven tools
2pcs / ER16 / 6000rpm
End-face fixed tools
2pcs / ER16
Max. drilling diameter
10mm
Tapping capacity
M8
Motor power
1kW

Linear axes

Rapid traverse
24m/min / 32m/min / 32m/min / 32m/min / 32m/min
Axis drive motor power
0.75kW / 0.75kW / 0.75kW / 1.2kW / 0.75kW

Other

Water tank capacity
170L
Power of coolant pump motor
0.4kW
Lubrication tank capacity
1.8L
Lubricatingoil pump power
0.005kW

Overall dimensions and weight

Weight
2500kg
Overall length
2160mm
Overall width
1220mm
Overall height
1670mm

Peripherals

Automatic barfeeders

XT 320 S2 3.2
XT 320 S2 3.2
Bar Size : 3mm — 20mm , Max. bar lenght : 3200mm

Chip conveyors

Fedek Turbo HB
Fedek Turbo HB
Chip carrier : Presence

Equipment

✅
Air reservoir system (Default)
✅
Automatic centralized oil lubrication (Default)
Bar feeder collet
✅
Bar feeder interface (Default)
✅
Coolant level switch (Default)
✅
Front Door Safety System (Default)
✅
Guide bush (Default)
Removable Rotary Guide Bush
Guide sleeve collet
Quantity: 1 pcs
High pressure coolant pump
✅
M30 automatic power off system (Default)
Main spindle collet
Quantity: 1 pcs
Off-center drill unit
2 position
Oil mist collector
✅
Parts catcher (Default)
✅
Spindle cone air blow device (Default)
✅
Status tower light (Default)
Tricolor
Sub spindle collet
Quantity: 1 pcs
✅
Tools box (Default)
Transformer
✅
Work area lighting lamp (Default)
✅
Work conveyor (Default)

Description

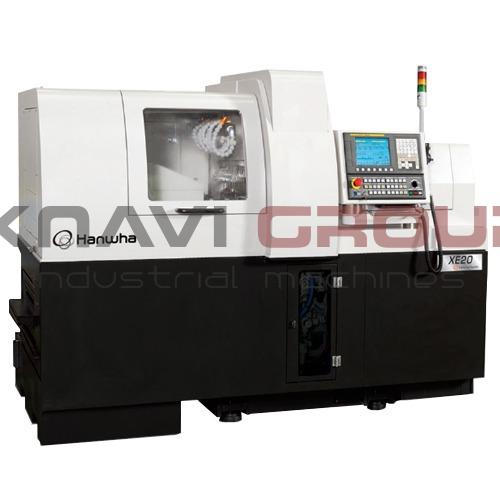

XE20NH Swiss-Type Automatic Lathe

Hanwha XE20NH Longitudinal Turning Machine is a modern solution for comprehensive bar workpiece processing, combining high precision, speed, and extensive milling and drilling capabilities.

Key advantages:

  • Dual-spindle machining: The main and counter-spindle enable complete part processing in a single setup, significantly reducing total cycle time.

  • High-speed driven tooling: Rotation speed up to 6,000 rpm for efficient drilling of small holes and reduced cycle time.

  • Flexible configuration: Option to choose between a guide bushing or guide bushing-less structure depending on the workpiece geometry.

  • High-performance motor for radial drilling

  • Optimal space utilization and higher chip disposal efficiency

  • Eccentric drilling option

Ideal for:

  • Batch and small-batch production of complex parts.

  • The machining industry where high precision and repeatability are required.

  • Manufacturing complex components for automotive, aerospace, medical, and watchmaking industries.
