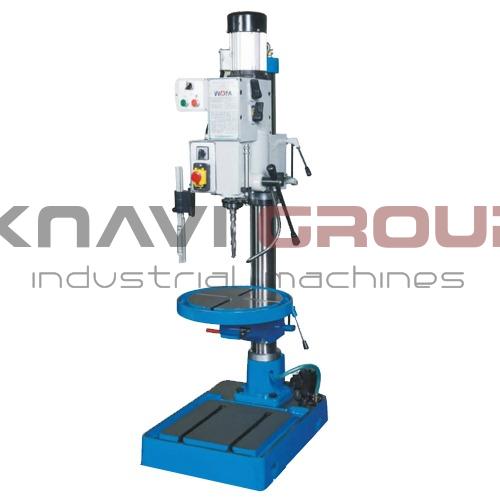

Vertical drilling machine Z5025

Series Z50
Vertical drilling machine variation Round column vertical drilling machine
Design drilling machine
Max. drilling diameter 25mm
Spindle speeds range 100rpm — 2900rpm
Spindle motor power 0.75kW / 1.1kW
Recalculating price…

Price & Terms

Price on Request

Specifications

Basic feauturies

Vertical drilling machine variation
Round column vertical drilling machine
Design
drilling machine

Capability

Max. drilling diameter
25mm

Working table

Working table size
440mm
Table stroke
560mm

Working area

Diameter of column
100mm
Distance between spindle axis and column
225mm
Distance between spindle end and working surface of basic plate
1670mm
Distance between spindle end and surface of worktable
630mm

Headstock

Spindle speed steps ranges
8pcs
Spindle speeds range
100rpm — 2900rpm
Spindle taper
MT3
Travel of spindle quill
150mm

Base

Base size
690mm x 500mm

Engines and power supply

Spindle motor power
0.75kW / 1.1kW
Cooling pump motor power
0.04kW
Voltage
380V / 50Hz

Overall dimensions and weight

Weight
290kg
Overall length
700mm
Overall width
560mm
Overall height
1900mm

Equipment

✅
Connecting rod (Default)
Quantity: 1 pcs
✅
Coolant system (Default)
✅
Drift (Default)
Quantity: 1 set
✅
Drilling chuck (Default)
Quantity: 1 pcs
Drilling vice
✅
Reduction sleeve (Default)
Quantity: 1 pcs
Safety guard
✅
Tools box (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)

Description

Vertical Drilling Machine Z5025

Professional industrial-class universal vertical drilling machine for high-precision hole machining, thread cutting and countersinking, designed for single-piece, small-batch and mass production.

Key Advantages:

  • Easy speed change — gear transmission allows simple speed switching for optimal work with various materials without complex setup.

  • High spindle speed — wide speed range ensures efficient drilling, reaming and countersinking with high productivity.

  • Automatic tool release — characteristic device guarantees instant and convenient tool change, reducing downtime.

  • Complete equipment — built-in coolant system and work lamp provide comfortable and quality machining in any conditions.

  • Reliable construction — powerful motor and ergonomic control ensure durability during intensive operation.

Application Area:

Drilling, countersinking, reaming, tapping and spot facing of holes in steel, aluminum and non-ferrous workpieces for machine building, metalworking and serial production at medium enterprises.
