Wire cut EDM HQ-1000F3

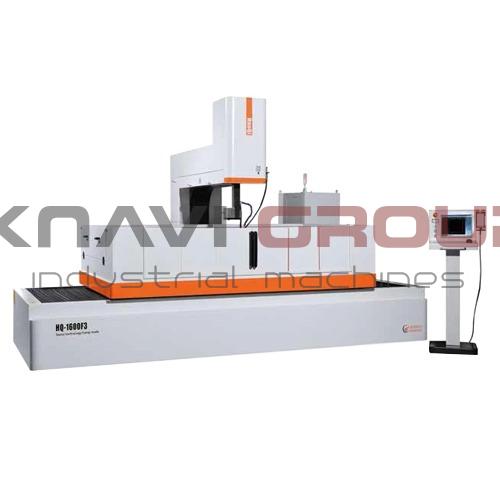

HQ-1000F3 Wire Cut Electrical Discharge Machine (WEDM)

Professional large-taper wire cut EDM machine for high-precision machining of complex parts with five-axis CNC and four-axis simultaneous servo control.

Key Advantages:

• Precision imported guides and direct drives — Fully imported linear guides, ball screws (ballscrew) with direct connection to AC servo drive motor. U, V, Z axes are also equipped with linear guides and ball screws with direct drive, ensuring high taper cutting accuracy and CNC control at any point on the Z axis.

• Automatic wire tensioning — Patented automatic wire tensioning device monitors the tension of the molybdenum wire in real time, completely eliminating wire vibration.

• Multi-stage filtration and sealed design — Multi-stage filter tank and fully enclosed sheet metal construction. No emulsion splash during long-term operation — cleaner and more environmentally friendly processing.

• High-precision quality inspection — Bed and components inspected using Carl Zeiss (Germany) and Mitutoyo (Japan) equipment. Pitch and backlash compensation performed with Renishaw (UK) laser interferometer.

• User-friendly AutoCut system with graphical programming — Automatic graphics-based programming, works directly within AutoCAD/CAXA. Five-axis CNC (XYUVZ), four-axis simultaneous control, machining of upper and lower surfaces of complex shapes.

• Advanced processing modes — Flexible combination of modes (continuous, single-block, forward, reverse, backward). Single-pass and multi-pass cutting. Corner delay for wire bending compensation. Backlash and pitch error compensation.

• 3D visualization — Process preview and real-time display. 3D tracking with zoom and multi-angle viewing during taper cutting.

• Automation and intelligent functions — Automatic state saving on power failure, processing resume on power-up, automatic retraction on short circuit. Automatic machine shutdown after job completion. Adjustable audible alarm.

• Multilingual interface — Switch between Russian, English, and Chinese.

Application:

Professional manufacturing of molds, dies, and complex parts with tapered surfaces and upper/lower dissimilar profiles. High-precision EDM processing in medium and large enterprises of mechanical engineering, instrument making, and tool production.
