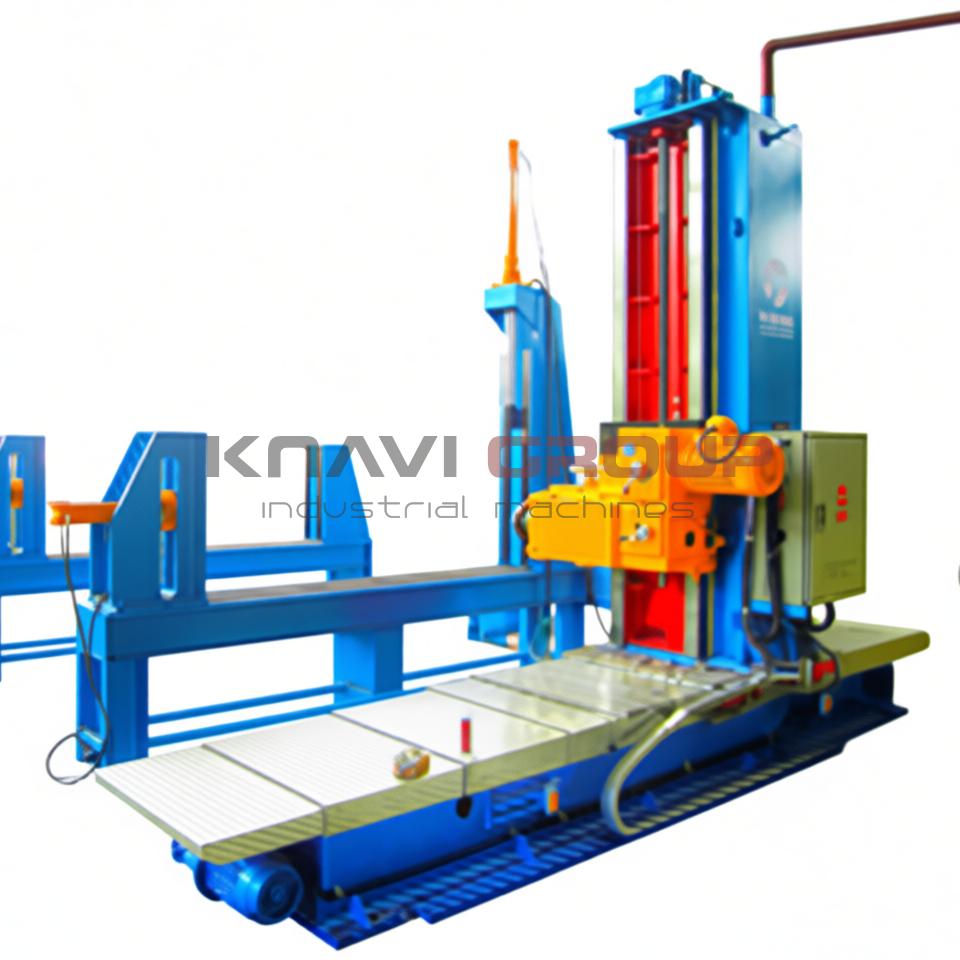

Face milling machine DX1540

Key advantages of the DX1540 face milling machine:

• Large working area and specialization: The machine is designed for face milling the ends of I-beams, box columns, and other profiled steel structures. The maximum size of the machined face is 1500 × 4000 mm, making it an indispensable piece of equipment for professional steel structure manufacturing.

• High rigidity and structural stability: The machine bed features a welded construction that undergoes thermal annealing, as well as rough and finish machining. This ensures high mechanical strength, minimal deformation, and long-term durability of the equipment.

• High movement precision: Both primary and auxiliary lead screw and nut mechanisms (screw drives) are used in the horizontal and vertical transmission systems, guaranteeing high positioning and movement accuracy of the slides.

• Optimal guideway system: The combination of rectangular guideways (providing high load capacity) and V-shaped guideways (ensuring high precision) guarantees smooth and stable movement of the moving parts even under heavy loads.

• Extended technological capabilities: The milling head is mounted on a swivel carriage and can be tilted in a range from 0° to 45°. This significantly expands the range of machinable parts and allows for angular milling operations.

• Reliable and efficient milling head: The standard 7.5 kW milling head features a well-engineered design, high rigidity, low noise level, and high efficiency. A wide spindle speed range (112–600 rpm) and the use of standard components simplify the selection of cutting tools.

• Ease of maintenance and mechanism protection: The horizontal guideways are equipped with telescopic protective covers that offer excellent sealing and a long service life. The presence of a special inspection window allows the operator to easily monitor the cleanliness and lubrication level of the guideways, as well as perform maintenance without disassembling the structure.

• Flexible feed control: The horizontal feed motor is two-speed, allowing separate control of the milling working stroke and rapid traverse (forward and reverse), saving time on auxiliary operations.

• High-quality components: The machine uses proven components, including an imported variable frequency drive (VFD) (Delta), reliable gearboxes, and high-quality electrical components (Chint), ensuring stable operation of the control system.

• Ease of operation: The overall machine design is characterized by simplicity, ease of control, and quick setup, which reduces the required skill level of the operator and accelerates equipment commissioning.
