Kaite

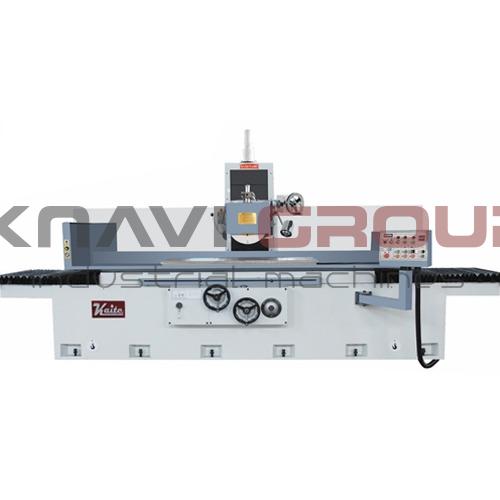

Surface Grinding Machine KGS615AHR

Series KGS
Control Full-automatic
Working table size 600mm x 1500mm
Max. load 1200kg
Recalculating price…

Price & Terms

Price on Request

Specifications

Basic feauturies

Control
Full-automatic

Working table

Working table size
600mm x 1500mm
Max. load
1200kg
Distance from spindle center line to surface of the table
600mm
Table rapid move speed
1.25m/min
T-slots
3pcs / 16mm

Headstock

Spindle speeds
1450rpm

Grinding stone

Grinding wheel size
400mm x 50mm x 127mm

Feeds

Feed travels
1600mm / 540mm

Engines and power supply

Main motor power
7.5kW
Hydraulic Power
5.5kW
Power of coolant pump motor
0.09kW
Dust collector motor
0.55kW
Crossfeed motor
0.37kW
Voltage
380V / 50Hz / Three phase

Overall dimensions and weight

Weight
7250kg
Overall length
5000mm
Overall width
2700mm
Overall height
2230mm

Equipment

✅
Anchor bolt set (Default)
Quantity: 1 set
✅
Coolant cooling system (Default)
Quantity: 1 pcs
✅
Grinding wheel (Default)
Quantity: 1 pcs
✅
Tools box (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)
Quantity: 1 pcs

Description

Key Features:

  1. Purpose and General Characteristics:

Primary purpose: high-precision grinding of flat surfaces on workpieces. It enables machining with micron-level accuracy. Designed for processing parts made of steel, cast iron, and other materials.
The machine is recommended for high-precision machining of flat surfaces on various components.
It is part of a product line that includes models ranging from small-sized to large-sized, with varying levels of automation (from manual control to CNC).


2. Models and Control System:

Model KGS 615AHR: Longitudinal and cross table movements are automatic. The Z-axis (vertical) features a lifting drive.
Model KGS 615AHD: Longitudinal and cross table movements are automatic. Movement along the Z-axis is performed using a SIEMENS PLC controller with a touch panel.

3. Design Features:

Bed: Manufactured from high-quality cast iron, ensuring high rigidity and vibration resistance of the structure.
Workpiece Clamping: For reliable and stable clamping of the part on the worktable, an electromagnetic chuck is used
