SOWIN

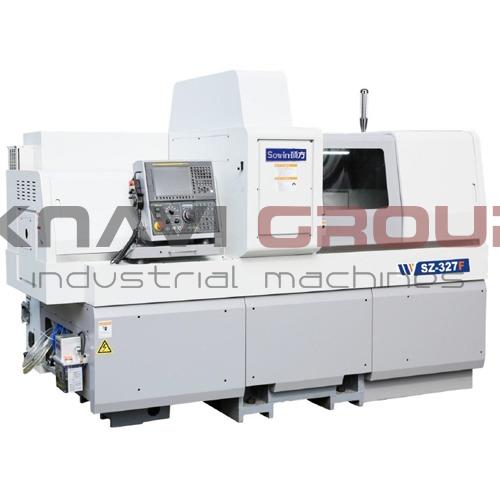

Swiss-type CNC lathe SZ-327F

Series F

Linear axis number 6pcs / X1 / X2 / Y1 / Y2 / Z1 / Z2

Total tools quantity 35pcs

Machining range diameter (spindle/subspindle) 32mm / 32mm

Max. processing length 320mm / Removable Rotary Guide Bush

Price & Terms

Price on Request

Specifications

Basic feauturies

Linear axis number 6pcs / X1 / X2 / Y1 / Y2 / Z1 / Z2

Total tools quantity 35pcs

Modification Dual spindles swiss-type lathe

CNC Fanuc 0i-TF Plus

Processing parameters

Machining range diameter (spindle/subspindle) 32mm / 32mm

Max. processing length 320mm / Removable Rotary Guide Bush

Main spindle

Spindle cooling Oil cooling

Spindle speeds range 6000rpm

Spindle bore diameter 39mm

C axis 0.001°

Motor power 5.5kW / 7.5kW

Back spindle

Spindle cooling Oil cooling

Spindle speeds range 6000rpm

Spindle bore diameter 39mm

C axis 0.001°

Motor power 3.7kW / 5.5kW

Cross driven tools main spindle

Cross driven tools 5pcs / ER16 / 4200rpm

Max. drilling diameter 10mm

Tapping capacity M8

Motor power 1.2kW

Cross driven tools sub spindle

Cross driven tools 4pcs / ER16 / 4500rpm

Max. drilling diameter 10mm

Tapping capacity M8

Motor power 1.2kW

Main spindle O.D. turning tools

Tool seat arrangement Upside tool holder

Tool number 6pcs

Tool Size 16mm x 16mm

Main spindle end face tools

End-face fixed tools 4pcs / ER16

Max. drilling diameter 10mm

Tapping capacity M8

Sub-spindle O.D. turning tools

Tool seat arrangement Side offset tool holder

Tool number 4pcs

Tool Size 12mm x 12mm

Sub-spindle end face tools

End-face driven tools 4pcs / ER16 / 4500rpm

End-face fixed tools 4pcs / ER16

Max. drilling diameter 10mm

Tapping capacity M8

Motor power 1.2kW

B-axis cutter block

Swivel angle 0° / 150°

End face drive tool (front) 4pcs / ER16

End face drive tool (back) 4pcs / ER11

Max. drilling diameter 8mm

Max. tapping/threading diameter M6

Max. rotational speed 6000rpm

Motor power 1kW

Linear axes

Rapid traverse 24m/min / 24m/min / 24m/min / 24m/min / 24m/min / 24m/min

Axis drive motor power 1.2kW / 1.2kW / 1.2kW / 1.2kW / 1.2kW / 1.2kW

Other

Water tank capacity 300L

Power of coolant pump motor 0.4kW

Lubricatingoil pump power 0.035kW

Overall dimensions and weight

Weight 5200kg

Overall length 3230mm

Overall width 2006mm

Overall height 2060mm

Peripherals

Automatic barfeeders

SN542 S2

Bar Size : 5mm — 45mm , Max. bar lenght : 3200mm , Magazine capacity : 28pcs \ 10mm

Chip conveyors

✅

SZ-326CC

Chip carrier : Presence

Equipment

✅

Air blow gun (Default)

✅

Automatic centralized oil lubrication (Default)

Automatic cut-off function

Automatic fire extinguisher

Bar feeder collet

✅

Bar feeder interface (Default)

✅

Front Door Safety System (Default)

✅

Guide bush (Default)

Removable Rotary Guide Bush

✅

Guide sleeve collet (Default)

Quantity: 1 pcs

High pressure coolant pump

100 bar

High pressure coolant pump

60 bar

High pressure coolant pump

30 bar

✅

Main spindle and sub spindle C-axis control (Default)

✅

Main spindle collet (Default)

Quantity: 1 pcs

Oil mist collector

✅

Parts catcher (Default)

✅

Parts Ejector (Default)

✅

Status tower light (Default)

✅

Sub spindle collet (Default)

Quantity: 1 pcs

✅

Tools box (Default)

✅

Transformer (Default)

Work conveyor

✅

Светодиодная лампа освещения рабочей зоны (Default)

Description

CNC Swiss-Type Lathe SZ-327F

The SZ-327F CNC Swiss-type lathe is an advanced multi-tasking machine equipped with a B-axis rotary turret. This unique configuration elevates turn-mill machining capabilities to a new level, allowing ultra-complex operations at arbitrary angles in a single setup. The SZ-327F perfectly combines the classic precision of sliding headstock turning with the flexibility of a full 5-axis milling center, ensuring maximum productivity when manufacturing parts with complex geometries.

Key Advantages:

B-Axis and High-Speed Live Tools: The live tool holder is equipped with an imported gearbox, guaranteeing high rigidity and stability during cutting. A rotation range from 0° to 150° allows milling and drilling at any required angle without repositioning the part. The maximum rotational speed of the live tool reaches 4200 rpm.
Maximum Tooling Capacity: The configuration includes 4×ER16 front live tool positions and 4×ER11 rear positions, ensuring rapid tool changes and significantly reducing auxiliary time.
CAD/CAM Integration: The CNC system fully supports complex modeling and B-axis machining through modern CAD/CAM software.
High Rigidity and Precision: The machine features a massive bed and precision guideways, guaranteeing vibration-free operation, high geometric accuracy, and durability during intensive mass production.

Application Areas:

Thanks to the rotary B-axis, the SZ-327F is indispensable in applications where conventional lathes would require secondary operations on a milling center.

Medical and Dental: Manufacturing of complex bone implants, surgical instruments, orthopedic screws, and dental abutments with angled holes, threads, and non-standard profiles.
Aerospace and Automotive: Production of precision fittings, fuel injectors, hydraulic valves, and turbine parts requiring multi-faceted milling and drilling of channels at complex angles.
Electronics and Instrumentation: Machining of miniature sensor housings, precision connectors, optical system components, and robotics parts.
