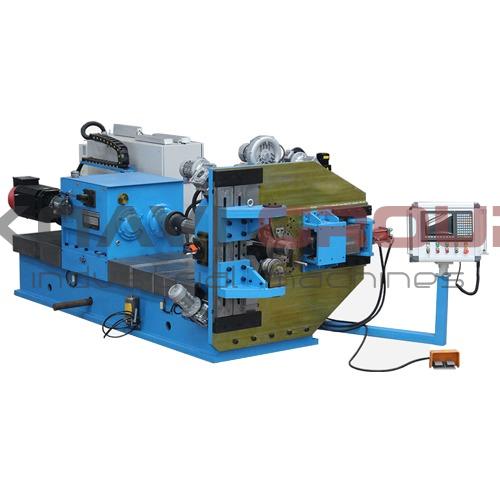

CNC hot-coiling spring machine HCM-50

Series HCM
Control method CNC
Quantity of controlled axis 2pcs
Direction of coiling Right + Left
Wire diameter 20mm — 50mm
Spring diameter 100mm — 350mm
Spring lenght 150mm — 800mm
Recalculating price…

Price & Terms

Price on Request

Specifications

Indication and control

Control method
CNC
Quantity of controlled axis
2pcs
Type of spring
Compression

Processing parameters

Direction of coiling
Right + Left
Wire diameter
20mm — 50mm
Spring diameter
100mm — 350mm
Spring lenght
150mm — 800mm
Max. stroke of the mandrel telescopic
1000mm
Max. spring weight:
200kg

Engines and power supply

Spindle motor power
26kW
Spindle speeds range
73rpm
Pitch axis motor
5.5kW
Pump motor power
5kW
Mandrel center bracket telescopic motor power
4pcs x 0.55kW
Cooling pump motor power
1.1kW
Total motor power
40kW
Voltage
380V / 50Hz

Other

Working pressure
70bar
Tank capacity
150L

Overall dimensions and weight

Weight
7000kg
Overall length
4200mm
Overall width
1900mm
Overall height
1800mm

Equipment

✅
Air-conditioner for electrical cabinet (Default)
Quantity: 1 pcs
✅
Automatic centralized oil lubrication (Default)
✅
Coolant system (Default)
✅
Electrical cabinet (Default)
Quantity: 1 pcs
✅
Foot brake (Default)
Quantity: 1 pcs
✅
Hydraulic system (Default)
✅
Operational panel (Default)
Quantity: 1 pcs
✅
Trolley for parts (Default)
Quantity: 1 pcs

Description

CNC Hot Coiling Spring Machine HCM-50 is designed for manufacturing a wide range of compression springs. It processes wire with a diameter of 20-50 mm, producing springs with an outer diameter of 100-350 mm and a height of 150-800 mm. Manufacturing for larger sizes is possible upon request.

Key Advantages:

  • Flexibility: Ideal for small-batch production with frequent model changes. Simple G-code programming.

  • Functionality: CNC with two servo drives allows precise control of pitch and coils. Performs end squaring (closed ends), double spring coiling, and automatic spring ejection.

  • Spindle Head with Two Modes: High-speed for thin wire and high-torque for thick wire.

  • Adjustable Feed Roller with precise scale adjustment.

  • End Squaring (Closing) Device for manufacturing springs with closed ends.

  • Center with 4 Electric Rollers for supporting mandrels of any size.
