GOANWIN

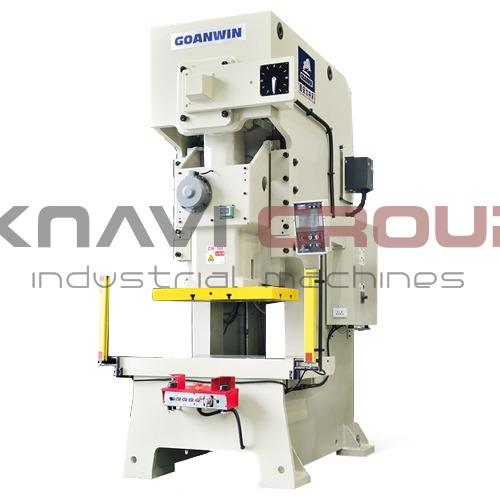

Punching press C1N-45H

Series C1N
Press type C-frame press
Control Semi-automatic
Type Electromechanical
Max. pressing force 45tn / 450kN
Slide stroke 80mm
Recalculating price…

Price & Terms

Price on Request

Specifications

Basic feauturies

Press type
C-frame press
Control
Semi-automatic
Type
Electromechanical

Capability

Max. pressing force
45tn / 450kN
Slide stroke
80mm
Slider strokes number per minute
100times/min
Closing height
250mm
Closing height adjustment
60mm

Working area

Distance from slider center to the side of column
120mm
Working table size
400mm x 300mm x 60mm
Workbench unloading hole size
38.1mm
Space between tie bars
280mm

Engines and power supply

Motor power
5.5kW
Voltage
380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight
3800kg
Overall length
1600mm
Overall width
950mm
Overall height
2500mm

Equipment

Die cushion
✅
Fastening bolts (Default)
Quantity: 1 set
Fast stamp change device
Quantity: 1 pcs
Foot brake
Quantity: 1 pcs
✅
Grease gun (Default)
Quantity: 1 pcs
Parts Ejector
Quantity: 1 pcs
Photoelectric protective device
Quantity: 1 pcs
Remote controller
Quantity: 1 pcs
Set of stamps
Quantity: 1 set
Status tower light
Quantity: 1 pcs
✅
Tools box (Default)
Quantity: 1 pcs
✅
Work area lighting lamp (Default)
Quantity: 1 pcs

Description

Key advantages of the C1N-45 H-type press (with an H-shaped table configuration):

  • Extended versatility of the working area (H-shaped bolster): The main difference from the V-series. The increased width and specific shape of the work table allow for the installation of larger, wider, or multi-station progressive dies, as well as working with wide strip blanks that do not fit on a standard table.

  • High structural rigidity: The all-welded C-frame made of high-strength steel is designed with reinforced stiffening ribs. This minimizes frame deflection under a 45-ton load, ensuring process stability and extending the service life of the die tooling.

  • Precision accuracy: The use of high-precision slide guides (roller type) minimizes lateral play and misalignment. This guarantees high repeatability of part dimensions in fine sheet metal stamping, blanking, and bending operations.

  • Reliable clutch and brake system: The machine is equipped with a modern dry pneumatic clutch and brake. Coupled with sensitive dual solenoid valves, this ensures instant response, a short slide braking distance, and an elevated level of operator safety.

  • Hydraulic overload protection: The built-in hydraulic overload protector automatically stops the slide and releases pressure in the event that the nominal force is exceeded. This reliably protects both the press mechanics and the expensive tooling from critical damage.

  • Ease of setup and maintenance: The open C-frame design, combined with the extended H-shaped table, provides unobstructed access to the working area from three sides. This significantly speeds up and simplifies the processes of die installation, alignment, and replacement.

  • Efficient lubrication system: An automatic or semi-automatic circulating lubrication system for the main components (crankshaft bearings, guides) reduces friction, decreases noise, prevents overheating, and extends maintenance intervals.
