Vertical CNC machining center JHV-1200
Series
JHV
Working table size
1350mm x 630mm
Max. weight of workpiece
800kg
Spindle cooling
Oil cooling
Tool magazine capacity
24pcs
Main Configuration
Spindle speeds range
10000rpm
12000rpm
15000rpm
Feed travels
1200mm / 650mm / 610mm
1200mm / 650mm / 810mm
Price & Terms
Price on Request
Specifications
Basic feauturies
Machine frame
Cast iron frame / Cast iron
CNC
CNC
Fanuc 0i-MF Plus
Working table
Working table size
1350mm x 630mm
T-slots
5pcs / 18mm / 100mm
Max. weight of workpiece
800kg
Spindle
Spindle cooling
Oil cooling
Spindle motor power
7.5kW / 11kW
Spindle speeds range
10000rpm
12000rpm
15000rpm
Spindle drive
Belt drive
Direct drive
Spindle taper
BT40
BT50
Distance from vertical spindle nose to surface of working table
120mm / 730mm
120mm / 930mm
Automatic tool changer (ATC)
Tool magazine type
Drum-type tool magazine
Tool changing type
With robotic arm
Tool magazine capacity
24pcs
Max. tool diameter
150mm / 75mm
Max. tool lenght
250mm
Max. tool weight
7kg
Feeds
Max. speed of traverse feeds
15000mm/min / 15000mm/min / 15000mm/min
Rapid traverse
30000mm/min / 30000mm/min / 24000mm/min
Power of feed motors
3kW / 3kW / 3kW
X/Y guideways type
Linear guidway
Z-axis guideway type
Linear guidway
X-axis transmission type
Ball screw
Y-axis transmission type
Ball screw
Z-axis transmission type
Ball screw
Feed travels
1200mm / 650mm / 610mm
1200mm / 650mm / 810mm
Cutting fluid
Through spindle coolant
Absence
Presence
Engines and power supply
Voltage
380V / 50Hz
Other
Lubrication system
Full-automatic
Splash guard cover
Full splash guard
Electrical cabinet
With heat exchanger
With aircondition
Overall dimensions and weight
Weight
7800kg
Overall length
3750mm
Overall width
2600mm
Overall height
2950mm
Peripherals
Tool measuring system
NC4 Renishaw
Tool measuring system
: Renishaw NC4
,
Repeatability accuracy
: 0.001mm
Workpiece measurement system
OMP60 Renishaw
Workpiece measurement system
: Renishaw OMP60
,
Repeatability accuracy
: 0.001mm / 0.001mm / 0.001mm
Chip conveyors
CC-CT Turbo
Chip removal system
: Chain type chip conveyor
,
Chip carrier
: Presence
CC-ST Turbo
Chip removal system
: Screw type chip conveyor
,
Chip carrier
: Presence
Equipment
3-axes linear roller guideway
Air blow gun
CE specifications
Coolant gun
Coolant splash ring for spindle
Disc oil and coolant separator
M30 automatic power off system
Manual Pulse Generator (MPG)
Rigid tapping function
Spindle dust-proof air-sealing system
Status tower light
Tricolor
Tools box
Transformer
Wash down device
Work area lighting lamp
Х/Y/Z axis bellows
Description

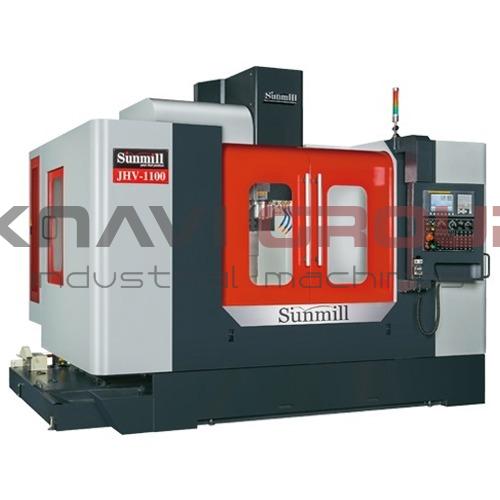

JHV-1100 / JHV-1200 — High-Performance Milling Machines with Reinforced Structure
The JHV-1100/1200 series milling machines are engineered to deliver maximum rigidity and precision under intensive operating conditions. Featuring a unique design with six slide blocks on the X and Z axes, along with a widened column base, these machines demonstrate exceptional stability when machining complex workpieces.
Key Advantages:
- Reinforced Structure: Double cross design base and six slide blocks on the X and Z axes provide enhanced rigidity and vibration damping
- Optimized Travel Ranges: Optional Z-axis travels of 810mm (BT40) and 720mm (BT50) available for diverse production needs
- Extended Machining Capabilities: Work area of X: 1100/1200mm, Y: 250mm, Z: 610mm enables efficient processing of large components
Ideal for:
- General machinery manufacturing, aviation industry, defense industry
- Production of large-sized parts
- Machining components from steel, cast iron, aluminum and other materials
