ZEYI

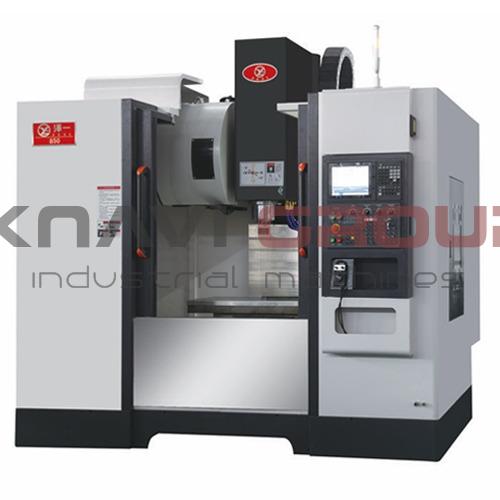

Vertical CNC machining center V11

Series V
Machine frame Cast iron frame
Working table size 1300mm x 600mm
Max. weight of workpiece 800kg
Recalculating price…

Price & Terms

Price on Request

Specifications

Basic feauturies

Machine frame
Cast iron frame

CNC

CNC
Fanuc 0i-MF
Mitsubishi M80
SINUMERIK 828

Working table

Working table size
1300mm x 600mm
T-slots
5pcs / 18mm / 100mm
Max. weight of workpiece
800kg

Spindle

Spindle taper
BT40
Spindle torque
20N⋅m
Distance from axis of vertical spindle to bed guideway
650mm
Distance from vertical spindle nose to surface of working table
120mm / 720mm
Spindle speeds range
rpm — 10000rpm
12000rpm
Spindle drive
Belt drive
Direct drive
Spindle motor power
11kW
15kW

Accuracy

Positioning accuracy
0.003mm / 0.003mm / 0.003mm
Repeatability accuracy
0.002mm / 0.002mm / 0.002mm

Automatic tool changer (ATC)

ATC
Presence / 24pcs
Tool magazine capacity
24pcs

Feeds

Feed travels
1100mm / 600mm / 600mm
Max. speed of traverse feeds
30mm/min / 30mm/min / 30mm/min

Overall dimensions and weight

Weight
7000kg
Overall length
3160mm
Overall width
2600mm
Overall height
2850mm

Equipment

✅
Air blow gun (Default)
✅
Automatic door opener (Default)
✅
Coolant splash ring for spindle (Default)
✅
Front Door Safety System (Default)
✅
Status tower light (Default)
✅
Tools box (Default)
✅
Work area lighting lamp (Default)
✅
Х/Y/Z axis bellows (Default)

Description

V11 – High-Performance Milling Machines with Reinforced Construction

The V8 machining center is designed to deliver maximum rigidity and precision under intensive operating conditions. Thanks to its unique construction, the machine demonstrates exceptional stability when machining complex workpieces.

Key Advantages:

  • Reinforced Construction: The robust bed structure is capable of withstanding the inertia generated during high-speed movement.

  • Option for 4th and 5th Axes: Expand machining capabilities with optional rotary axes.

  • Protective Covers on All Three Guideways: Extend the equipment's service life.

Ideal for:

  • General machinery manufacturing, aviation industry, defense industry

  • Production of large-sized parts
  • Machining components from steel, cast iron, aluminum and other materials
