Vertical CNC machining center V12
ZEYI

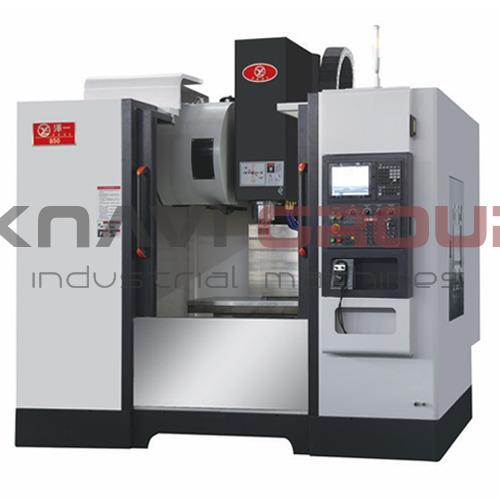

Vertical CNC machining center V12
Series
V
Machine frame
Cast iron frame
Working table size
1360mm x 700mm
Max. weight of workpiece
1000kg
ATC
Presence / 24pcs
Price & Terms
Price on Request
Specifications
Basic feauturies
Machine frame
Cast iron frame
CNC
CNC
Fanuc 0i-MF
Mitsubishi
SINUMERIK 828
Working table
Working table size
1360mm x 700mm
T-slots
5pcs / 18mm / 122mm
Max. weight of workpiece
1000kg
Spindle
Spindle torque
20N⋅m / 24N⋅m
Distance from axis of vertical spindle to bed guideway
785mm
Distance from vertical spindle nose to surface of working table
170mm / 840mm
Spindle speeds range
8000rpm
12000rpm
Spindle drive
Belt drive
Direct drive
Spindle taper
BT40
BT50
Spindle motor power
15kW
18.5kW
Accuracy
Positioning accuracy
0.005mm / 0.005mm / 0.005mm
Repeatability accuracy
0.003mm / 0.003mm / 0.003mm
Automatic tool changer (ATC)
ATC
Presence / 24pcs
Tool magazine capacity
24pcs
Feeds
Feed travels
1200mm / 700mm / 670mm
Max. speed of traverse feeds
24mm/min / 24mm/min / 20mm/min
Overall dimensions and weight
Weight
9500kg
Overall length
3600mm
Overall width
3000mm
Overall height
3400mm
Equipment
✅
Automatic door opener
(Default)
✅
Front Door Safety System
(Default)
✅
Status tower light
(Default)
✅
Tools box
(Default)
✅
Work area lighting lamp
(Default)
✅
Х/Y/Z axis bellows
(Default)
Description
V12– High-Performance Milling Machines with Reinforced Construction
The V8 machining center is designed to deliver maximum rigidity and precision under intensive operating conditions. Thanks to its unique construction, the machine demonstrates exceptional stability when machining complex workpieces.
Key Advantages:
Reinforced Construction: The robust bed structure is capable of withstanding the inertia generated during high-speed movement.
Option for 4th and 5th Axes: Expand machining capabilities with optional rotary axes.
Protective Covers on All Three Guideways: Extend the equipment's service life.
Ideal for:
General machinery manufacturing, aviation industry, defense industry
- Production of large-sized parts
- Machining components from steel, cast iron, aluminum and other materials
