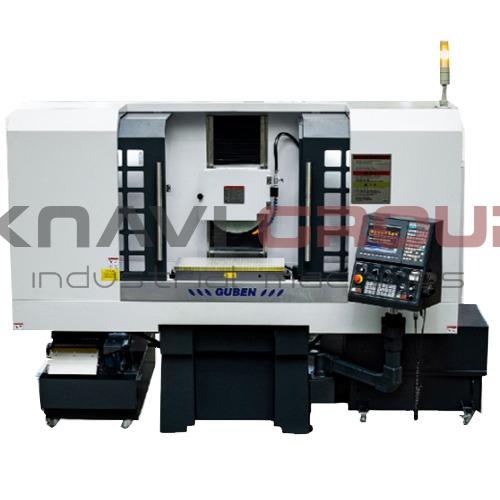

Surface Grinding Machine SG-104PC2
Price & Terms
Specifications
GUBEN SG-104PC2Basic feauturies
- Control
- Semi-automatic
Working table
- Working table size
- 1020mm x 400mm
- Max. load
- 680kg
- Distance from spindle center line to surface of the table
- 630mm
- T-slots
- 3pcs / 14mm
Headstock
Grinding stone
- Grinding wheel size
- 400mm x 127mm x 40mm
Accuracy
- Machining Accuracy
- 0.002mm / 300mm
- Best surface roughness
- 0.08μm/Ra
Engines and power supply
- Hydraulic Power
- 2.2kW
- Power of coolant pump motor
- 0.18kW
- Voltage
- 380V / 50Hz / Three phase / AC
Overall dimensions and weight
- Weight
- 3450kg
- Overall length
- 3500mm
- Overall width
- 2600mm
- Overall height
- 2300mm
Equipment
Description
Key Advantages of the SG-104PC2 Surface Grinding Machine
The PC2 series machines utilize precision linear guideways instead of sliding guideways, delivering twice the precision in minimum feed (0.5 µm vs. 1.0 µm for the PC series) and eliminating backlash during reversal, making the machine ideal for ultra-precision grinding.
1. High Machining Accuracy
Surface parallelism: 0.002 mm
Achievable surface roughness: Ra 0.08 µm
2. Automation and Versatility
Multiple grinding programs: semi-automatic, automatic, groove cutting, and slotting
Machining of grooves with varying depths and widths
Various plunge grinding strategies: left, right, both sides, and Z-shaped
3. Intelligent Grinding Wheel Dressing System
Coordinated dressing of the wheel's bottom face and side edges
Automatic grinding wheel wear compensation within the machining program
Configurable automatic dressing cycle start or forced manual dressing
4. Constant Surface Speed (CSS) Function
Automatic spindle speed increase as the wheel diameter decreases
Maintains optimal grinding surface speed
Ensures consistent surface quality throughout the entire lifespan of the wheel
5. User-Friendly Control and Operation
Drop-down menu for quick adjustment of feed parameters
Table travel limit input via teaching mode
Real-time display of program execution status and informational messages
Customizable parameter settings
Self-diagnostic function for fault detection
6. Compact Footprint with High Productivity
Compact dimensions: 4800× 3000× 2300mm
Optimal balance of productivity and floor space
